12V DC-DC & 240V Mains Hook Up Complete Camper Van Kit

Mains Socket Finish
Hook Up Flap Colour	Clear

PLEASE NOTE – THE LEAD TIME ON THIS KIT IS CURRENTLY 1 WEEK.

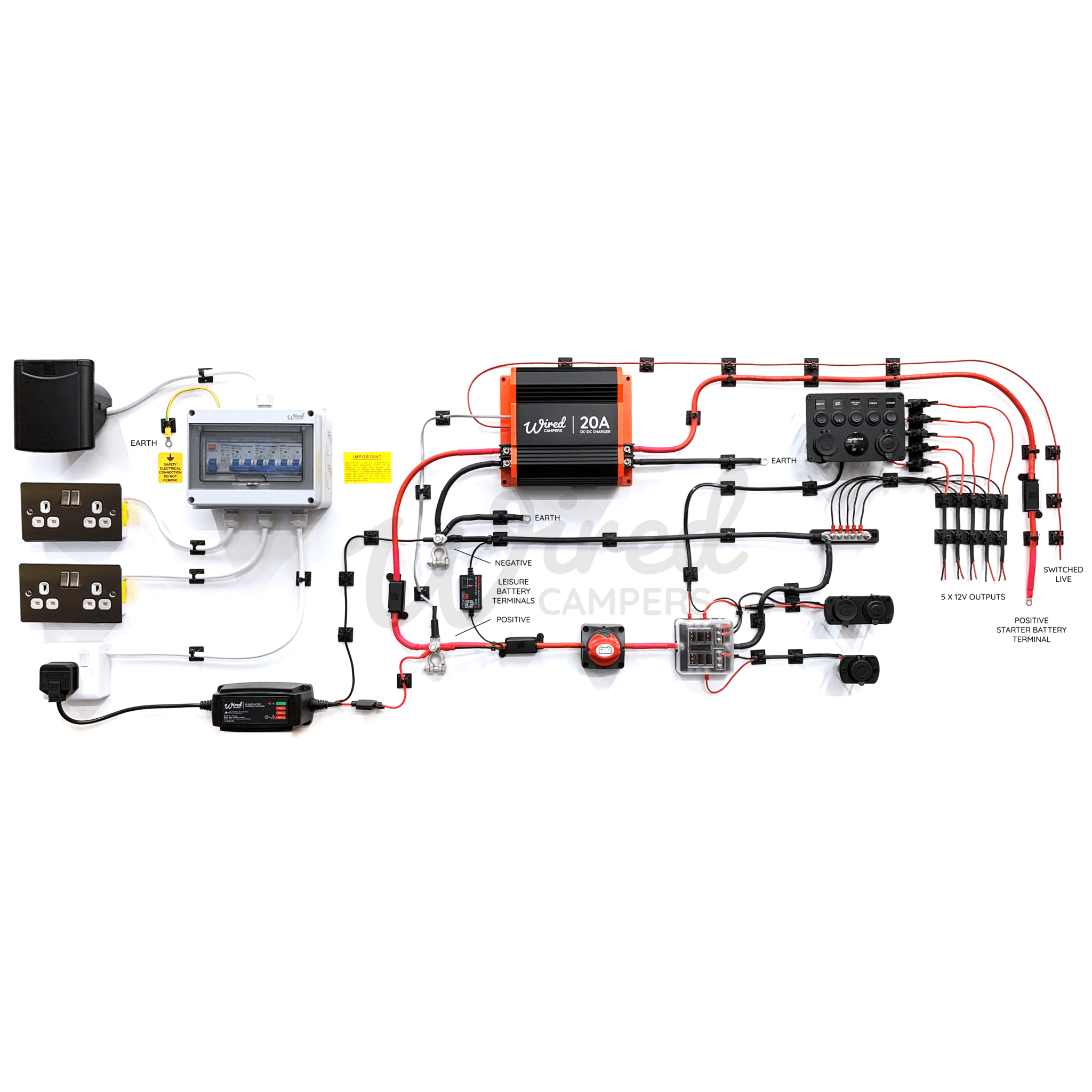

This kit will provide you the following functions –

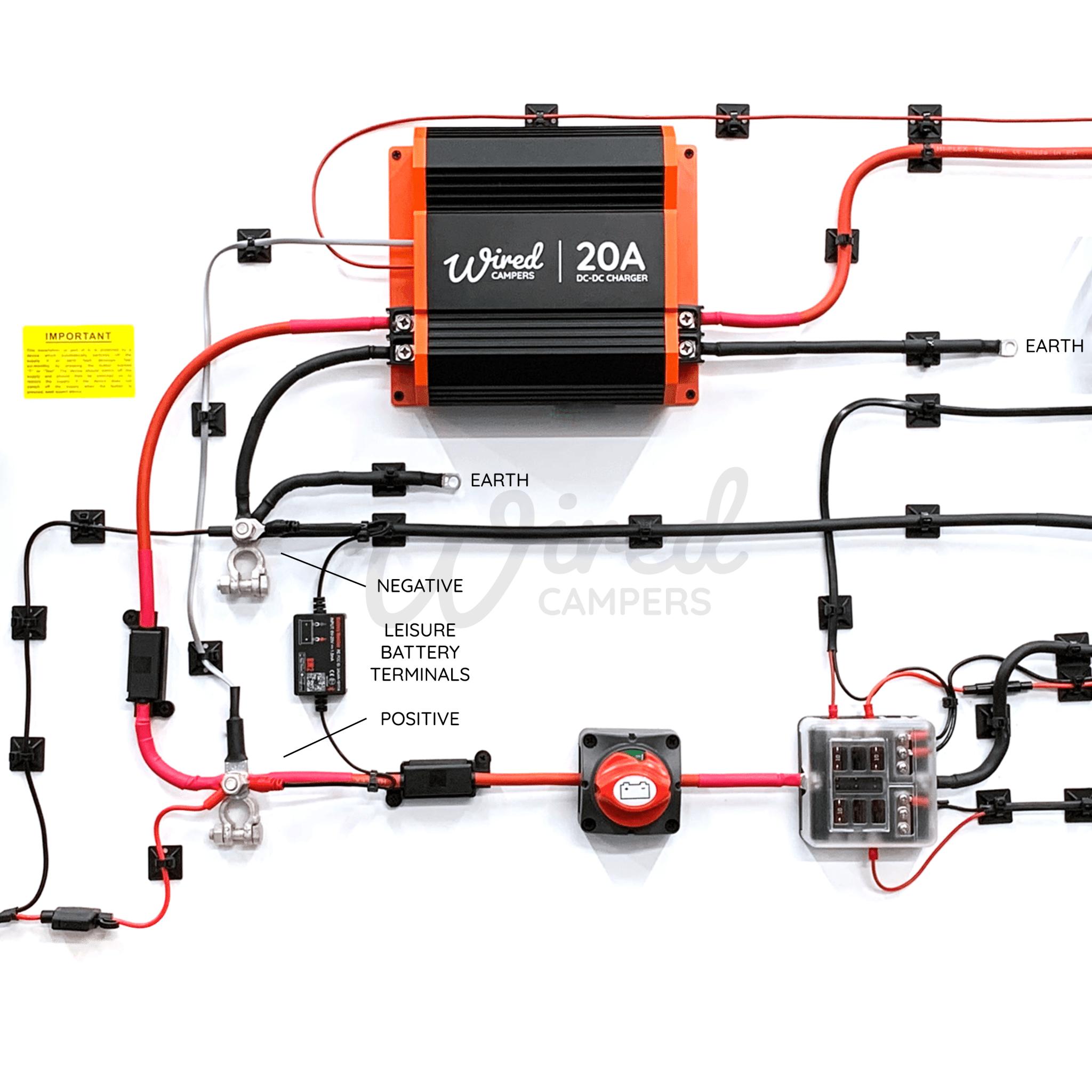

12V LEISURE BATTERY CHARGING

Leisure battery charging from the alternator your van. This is powered by our 20A DC-DC battery to battery charger.

Not only will this kit work with smart alternators, it’ll also work with standard ones too. It’ll provide a more stable and reliable charge to your leisure battery (extending life & available capacity) over a traditional voltage sensitive relay kit.

What makes up this part of the kit?

20A DC to DC battery to battery charger
7M 16mm2 Red hi-flex battery cable
5M 16mm2 Black hi-flex battery cable
5M 1.5mm2 Ignition trigger wire cable
1 X Positive leisure battery terminal
1 X Negative leisure battery terminal
2 X PVC battery terminal covers
2 X Bolt down MIDI fuse holders
2 X 30 AMP MIDI fuses
3 X 16mm2 8mm Hole copper crimp terminals
11 X 16mm2 6mm Hole copper crimp terminals
8 X 70mm Red heat shrink sleeve
6 X 70mm Black heat shrink sleeve
Wired battery temperature sensor

Technical Details

Transformation – 12V > 12V
Input battery voltage – 8V > 16VDC
Charging current – 20A
Lead acid charging voltage – 13.2V > 14.7V
Lithium charging voltage – 12.6V > 14.6V
Efficiency – 90%

BLUETOOTH BATTERY MONITOR

This great Bluetooth monitor allows you to keep an eye on the current state of leisure battery by providing various stats such as voltage etc as well as –

Receive notifications of battery condition when in bluetooth range.
Alerts via your phone if the system detects abnormal data.
Short-circuit and reverse connection protection.
Data stored in the battery monitor for up to 35 days if out of sync.

What makes up this part of the kit?

Bluetooth 4.0 mobile app 12V battery voltmeter monitor

12V 6 WAY FUSE BOX, FUSE & ISOLATOR

This is the central hub for the distribution of 12V power. This runs from your leisure battery via a fuse and isolator.

What makes up this part of the kit?

12V 6 Way blade fuse box block holder with LED indicator & fuses
MIDI bolt in fuse holder
100 AMP MIDI fuse
Removable key medium duty 12V 200A battery power isolator
3M 16mm2 Red hi-flex battery cable
3M 16mm2 Black hi-flex battery cable
2 X 16mm2 10mm Hole copper crimp terminals
1 X 16mm2 8mm Hole copper crimp terminals
5 X 16mm2 6mm Hole copper crimp terminals
6 X 70mm Red heat shrink sleeve
2 X 70mm Black heat shrink sleeve

Isolator Technical Details

275A Continuous current
1000A Peak current (5 seconds)
10mm Terminals
Four removable side panels for easy cable entry
Mounting bolts and locking nuts
Removable key for additional safety

Fuse Box Technical Details

Built in negative bus bar
LED function on each output that will illuminate to show any blown fuses
Numerous labels for easy identification of outputs
Complete with 6 fuses (2 X 5A, 2 X 10A, 2 X 15A)
Mounting screws

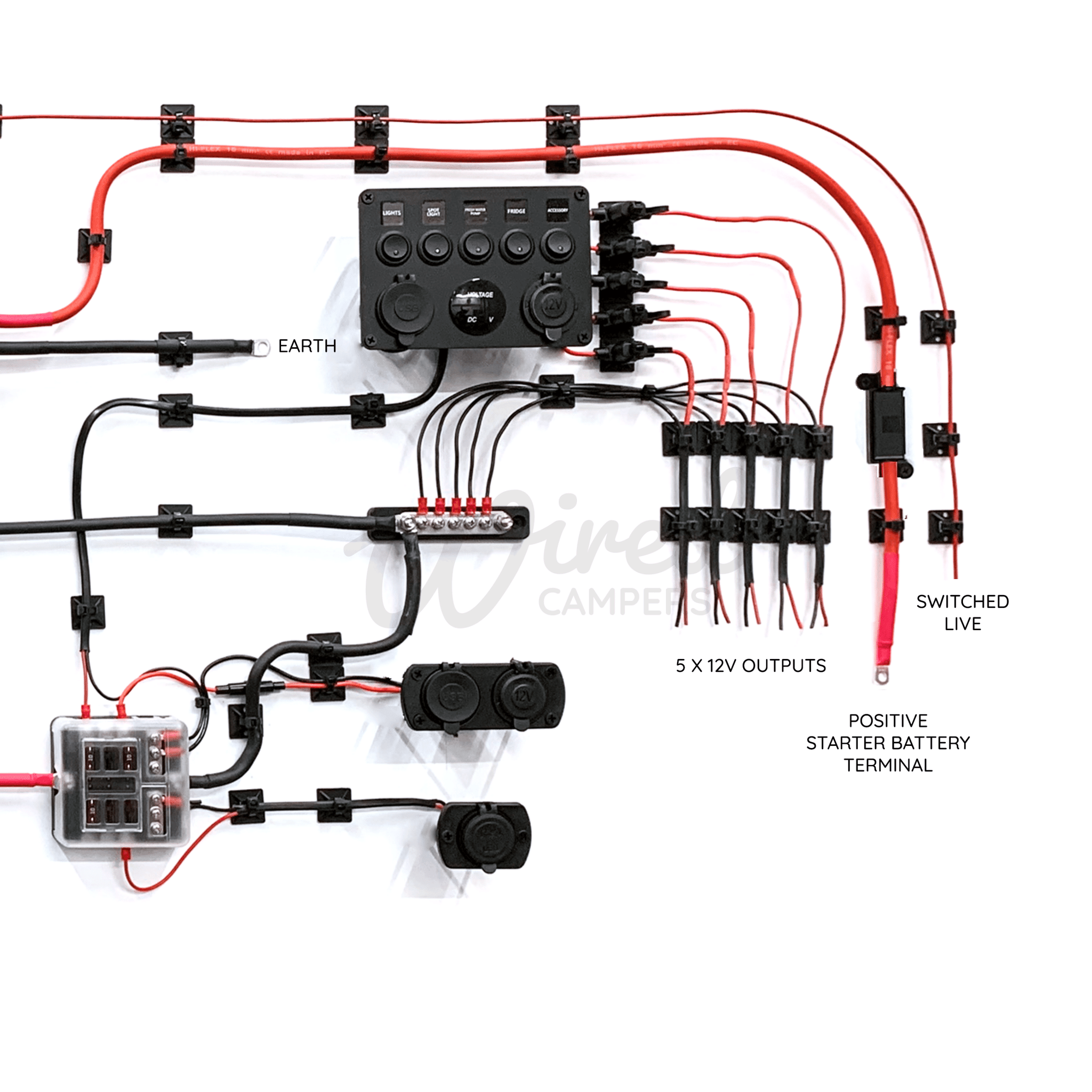

12V MAIN CONTROL PANEL & BUS BAR

This is the main control panel in the van, fed from one of the outlets on the 6 way fuse box. This unit comes with a voltmeter, USB port and a 12V port. The panel has five switched fused outlets to feed the other 12v items in your van such as your lighting, water pump. fridge etc.

There is also a 5 way negative bus bar provided, so you can terminate all negatives to this point from the control panel.

What makes up this part of the kit?

12V Camper/Caravan 5 gang switched USB main control panel
5 Way terminal DC negative common bus bar
2M 16mm2 Black hi-flex battery cable
5M 2.0mm2 twin core thin wall automotive cable
20M 2.0mm2 twin core thin wall automotive cable
1 X 16mm2 8mm Hole copper crimp terminals
1 X 16mm2 6mm Hole copper crimp terminals
11 X Insulated ring terminals
2 X 70mm Black heat shrink sleeve

Panel Technical Details

Pre-wired for quick fitting
5 gang independent switches complete with in-line fuse holders with fuses
Dual 2.1A USB Charger
Voltmeter
12V Power socket
Blue LED

Bus Bar Technical Details

Max – 100A 48V
Number of screw terminals – 5
Number of studs – 2

12V MINI PANEL

Again, powered from the 6 way fuse box, this small panel is great for installing in the bed area of your van as it doesn’t take up too much space and its ideal for charging a phone or tablet.

What makes up this part of the kit?

12V Camper/Caravan mini panel – dual quick charge 2.4A USB & 12V socket
Two hole mounting plate with screws
2.5M 2.0mm2 twin core thin wall automotive cable

Technical Details

Quick Charge Dual 2.4A USB Chargers
12V Power socket
Fitting Screws
Terminated cables with an in-line fuse
Blue LED

12V QUICK CHARGE PORT

Similar to the other two units, this is also powered from the fuse box, but this one is your high powered quick charge USB C (PD) & USB A port, suitable for charging large capacity devices.

What makes up this part of the kit?

Quick Charge 3.0 18W USB C PD port & USB A port 18W
One hole mounting plate with screws
2.5M 2.0mm2 twin core thin wall automotive cable

Technical Details

Built in ON/OFF switch to conserve power
USB Type A Quick Charge 3.0 Port
USB Type C PD Port
5V – 3A / 9V – 2A / 12V – 1.5A
Blue LED

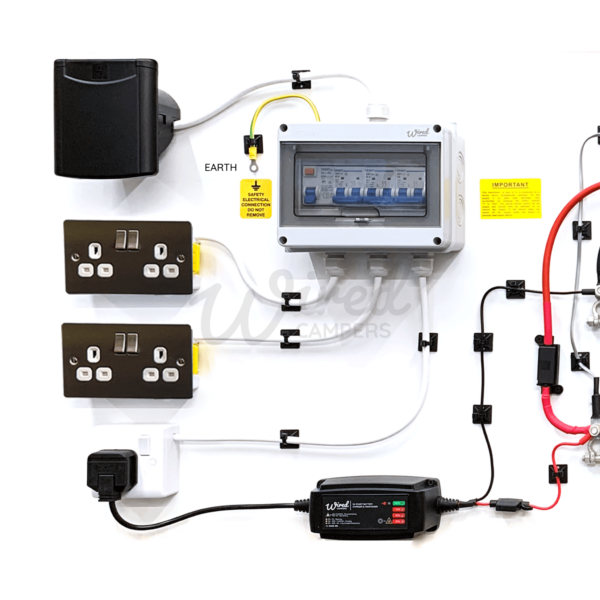

240V MAINS HOOK UP

This part of the kit will allow you to hook up to a standard 16A camp site site hook up and will then power the mains sockets in the van. As standard, the kit will come with two double three pin sockets (In a choice of finish), both complete with dual 2.1A USB ports and a standard three pin socket to power the on board mains battery charger.

This mains consumer unit will be 90% pre-assembled with all the major wiring in the completed. All you need to do is route the cables in your van and wire up the 16amp hook up point, the switch, and sockets.

What makes up this part of the kit?

IP55 Rated 8 way enclosure with earthing bar
30 mA Double pole RCD
2 X 10A Double Pole MCBs for double sockets
6A Double pole MCB for battery charger single socket
2 X 13A Metal flat double sockets
Single white plastic socket
2 X Flush double socket mounting boxes
Surface mount single socket mounting box
Flush hook up point available in black or white
5M 2.5mm2 3 core flexible mains cable
3 X 3M 1.5mm2 3 core flexible mains cable
2M 6mm2 tri rated earth cable
4 X 20mm Glands
Safety stickers

Technical Details

Main input protected with double pole RCD
Each Individual outlets protected with double pole MCBs
Flush mounted magnetic hook up flap (Available in black or white).

SMART MAINS LEISURE BATTERY CHARGER (CHOICE OF TWO UNITS)

This is small but vital part of the kit. These chargers are hard wired onto the leisure battery terminals in the van. It serves various functions but the two main ones enable you to keep your leisure battery topped up at home as the charger can be left attached permanently but also when on site, it keeps power to your battery so that you can continue to run your 12V equipment without having to start the van or rely on solar.

12V 10A/9A 6 Stage (Lead Acid/AGM) / 4 Stage (Lithium) mains smart intelligent leisure battery charger & maintainer.

TECHNICAL DETAILS

Short circuit, over charge and reverse polarity protection
Leisure battery charger output – 10A (Lead Acid/AGM) / 9A (Lithium)
Max Voltage – 14.5V Lead Acid / 14.9V AGM / 14.4V Lithium
LCD Screen showing charging current, battery condition and voltage
LCD Screen showing charging current, battery condition and voltage

ADDITIONAL IMPORTANT INFORMATION

Although we have listed the 12V cable as separate lengths in each part of the kit, these are only suggestions as we know sometimes this isn’t suitable and you need longer or shorter lengths. So all of the same cable will be provided on a continuous roll for you to cut up and install as per your build to give you a bit more flexibility.

As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
