240V Mains Camper On Site Hook Up Kit – 2 X Double Sockets & Fridge Outlet

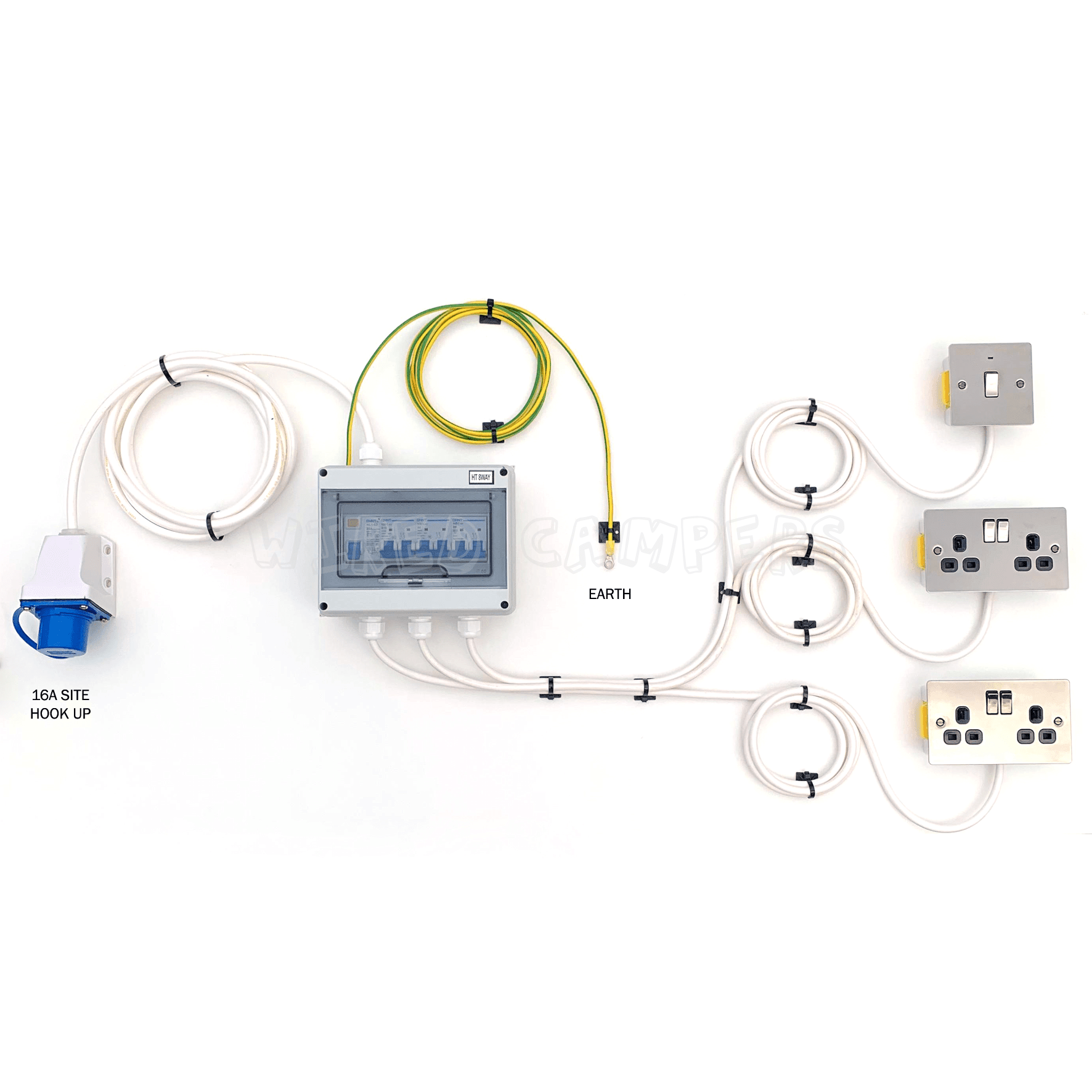

This is a complete kit to wire up your camper to 240V with a mains hook up, perfect for when you’re on site. This kit will provide you with two double sockets as well as a double pole switch to power a 2/3 way fridge.

This kit will be 90% pre-assembled with all the major wiring in the consumer unit completed. All you need to do is route the cable in your van and wire up the 16amp hook up point, the switch, and sockets.

When using your camper in the EU, they tend to use a system where the natural is not earthed, having double pole equipment ensures a higher level of safety. The outlets are also individually protected by their own MCBs as per regulations.

Kit Contains

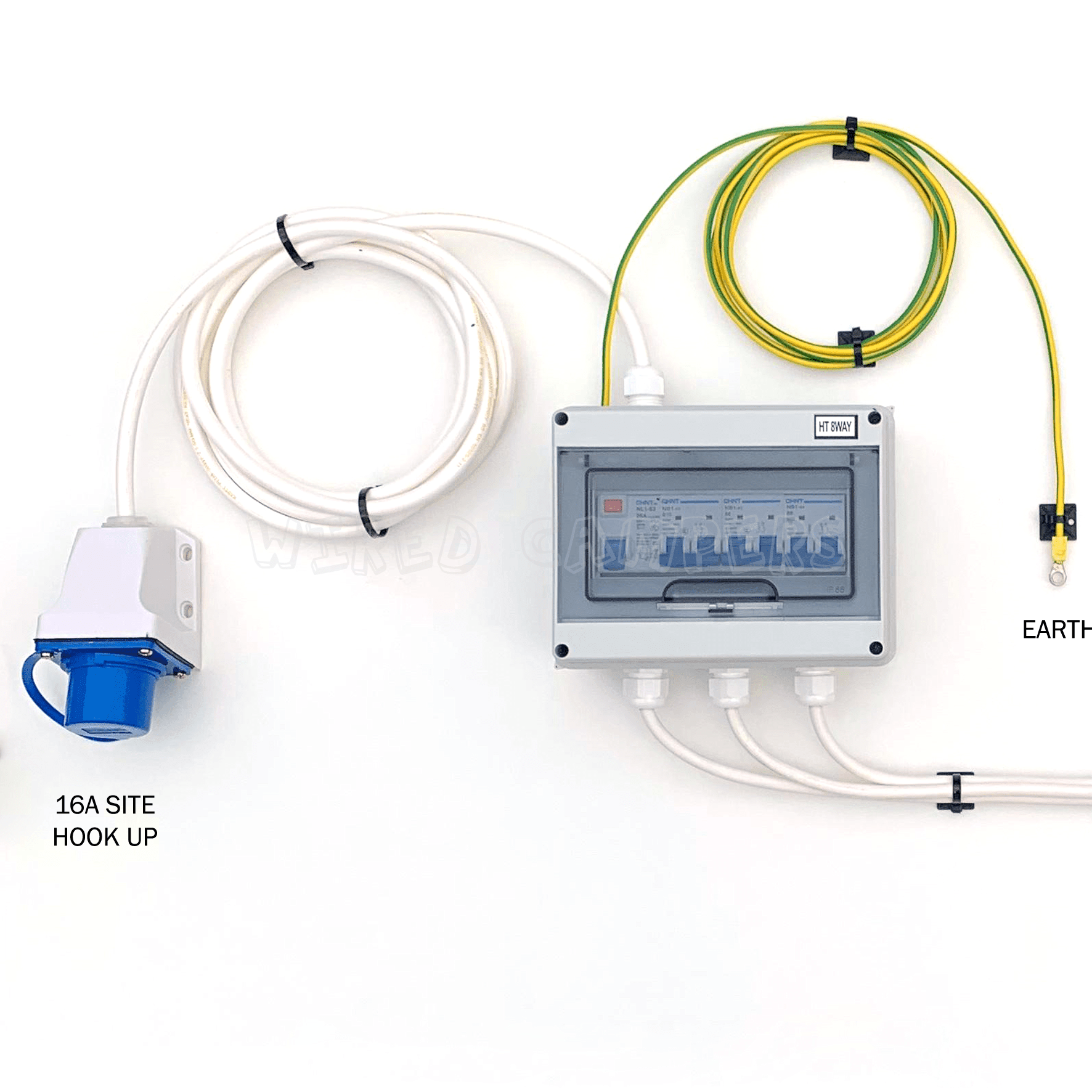

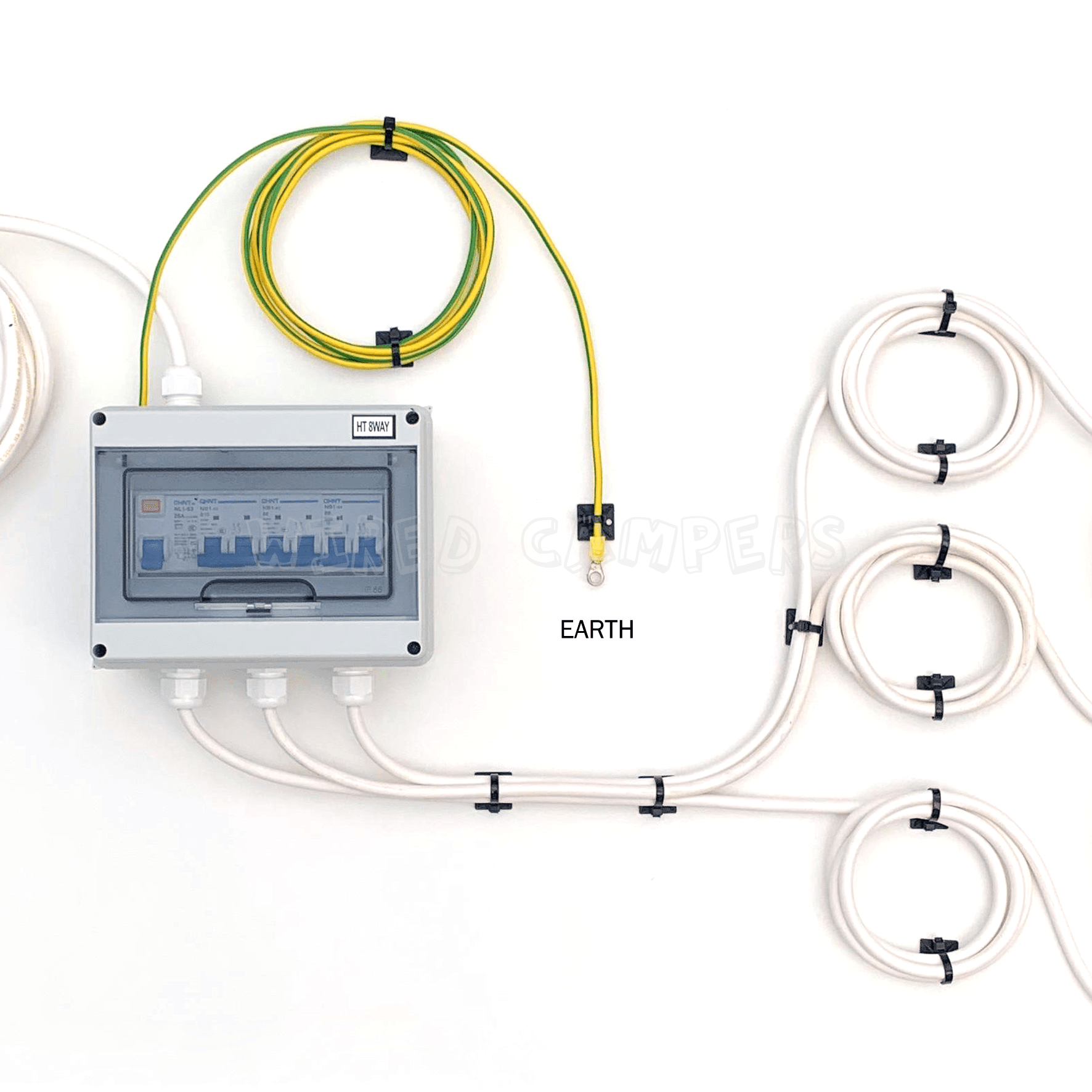

IP55 Rated 8 Way Enclosure with Earthing Bar

30 mA Double Pole RCD

2 X 10A Double Pole MCBs For Double Sockets

6A Double Pole MCB For Fridge

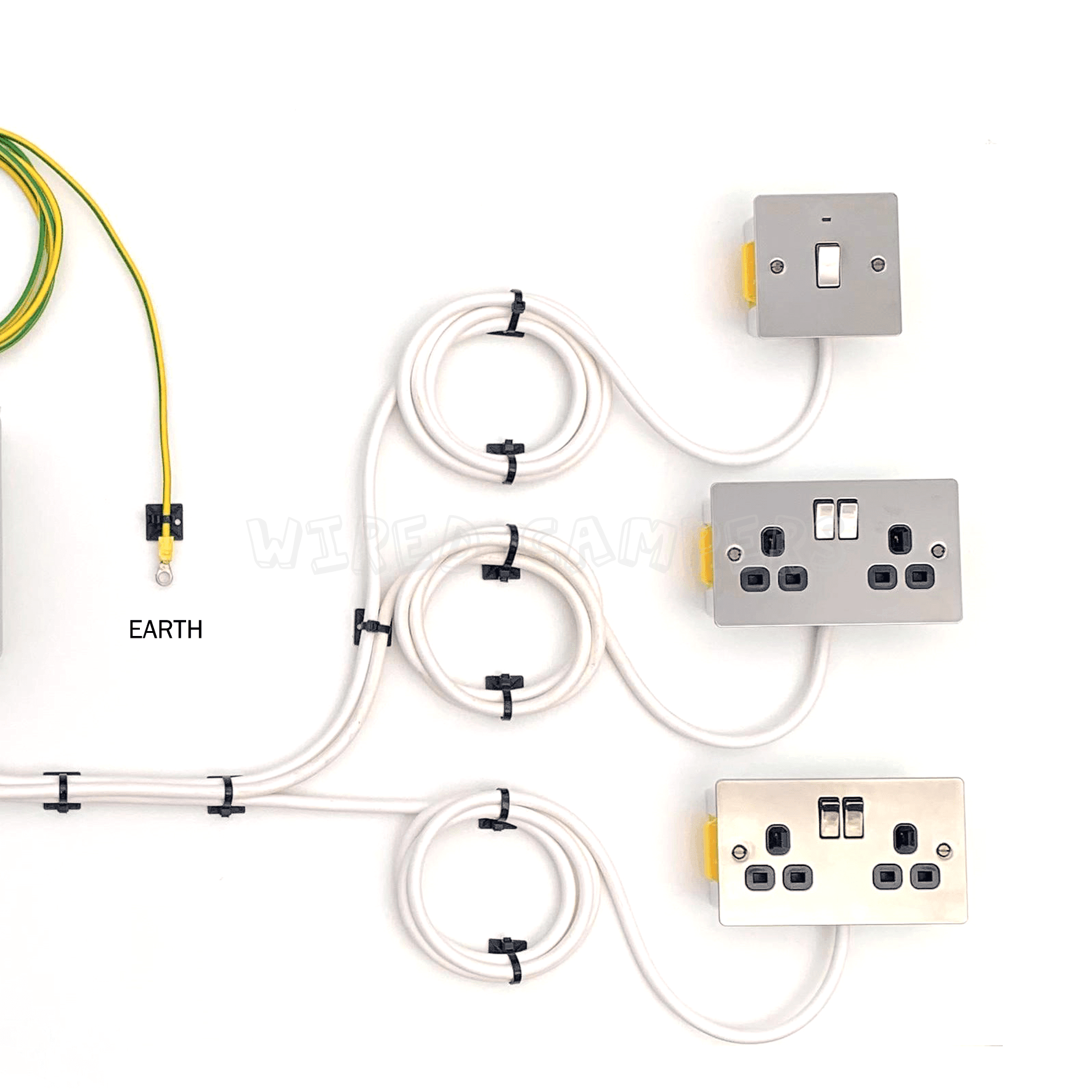

2 X 13A Metal Flat Double Sockets

20A Metal Flat Double Pole Switch

2 X Double Socket Mounting Boxes

Single Socket Mounting Box

240V IP44 Rated Hook Up Point With Dust Cover

5M 2.5MM Flexi Mains Cable For Hook Up

3 X 3M 1.5MM Flexi Mains Cable For Sockets

2M Earth Cable

4 X 20MM Glands

100 X Cable Ties

100 X Cable Tie Bases
