DIY Self Build 240V Camper Van Mains Hook Up Kit With Victron Battery Charger

This is a complete DIY kit install mains hook up into your camper van. Once fitted this will provide you with 240V mains while on site and provide power out to a double socket. single socket/double pole switch (for hard wiring a 2/3 way fridge), and a single socket for a battery charger connection.

We know, and you have probably seem them too, that there are loads of consumer units advertised as “camper” or “caravan units”. When 99% of the time they are nothing of the sort.

Just having an RCD and a MCB isn’t enough, they need to be the right ones to be safe and compliant.

As in all our kits, we only ever use double pole breakers. When using your camper in the EU, they tend to use a system where the natural is not earthed, having double pole equipment ensures a higher level of safety. Each outlet is also individually protected by their own MCB as per regulations.

The RCD is also correct being a Type A unit, and MCB’s with a B tripping curve.

With the battery charger in the kit, this would also mean when plugged in on site, the unit will keep your leisure battery topped up.

This kit is in parts so will require assembly by a professional electrician.

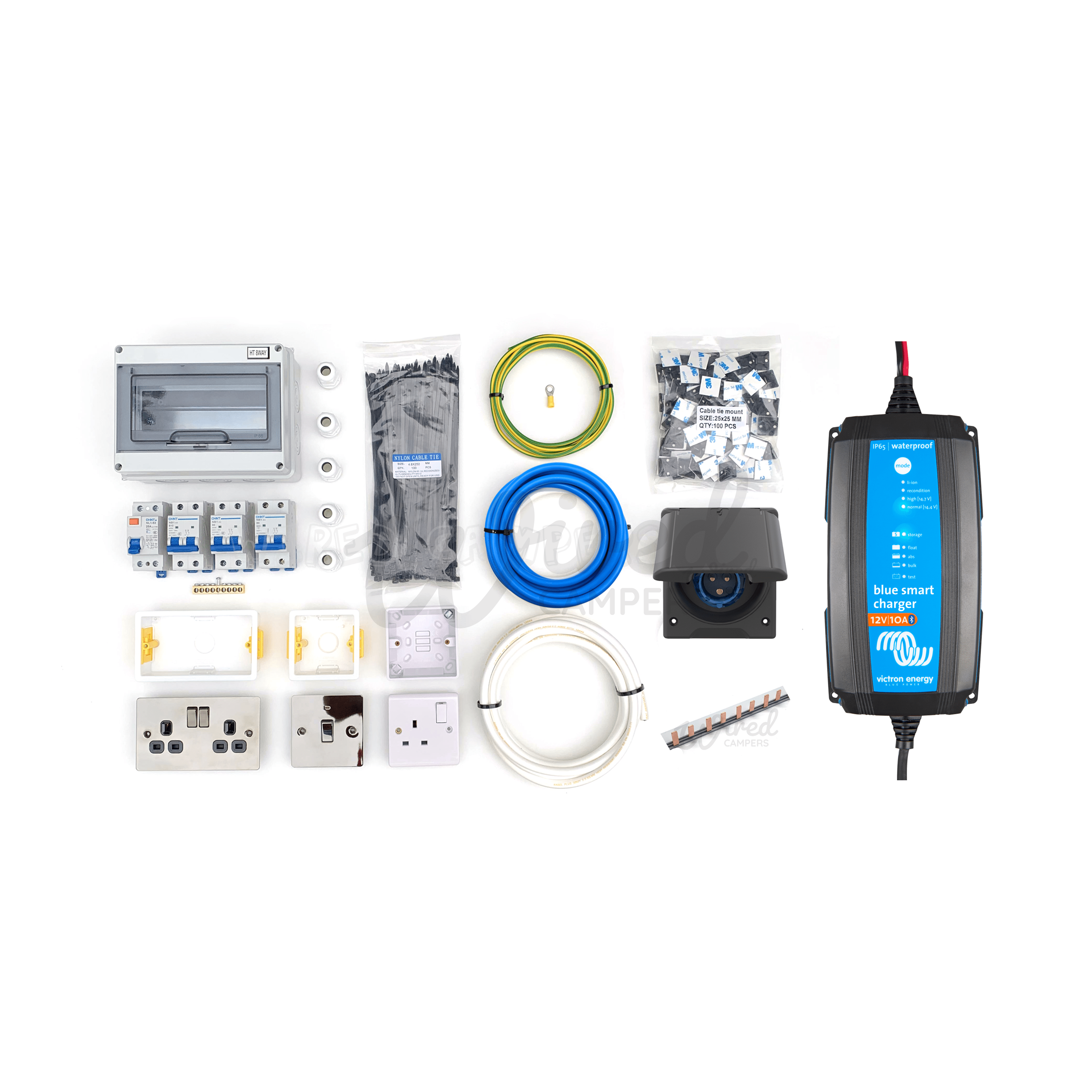

KIT CONTENTS

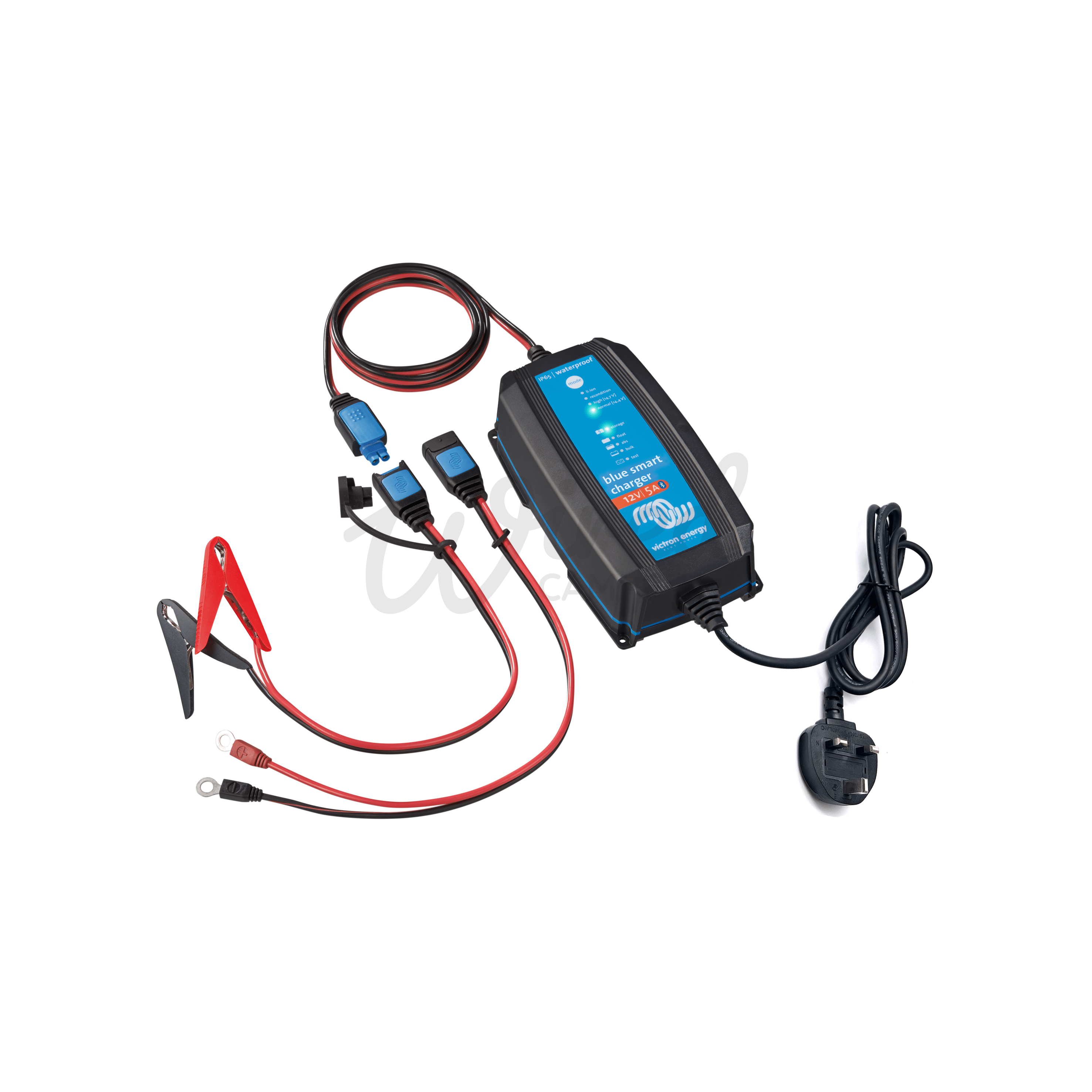

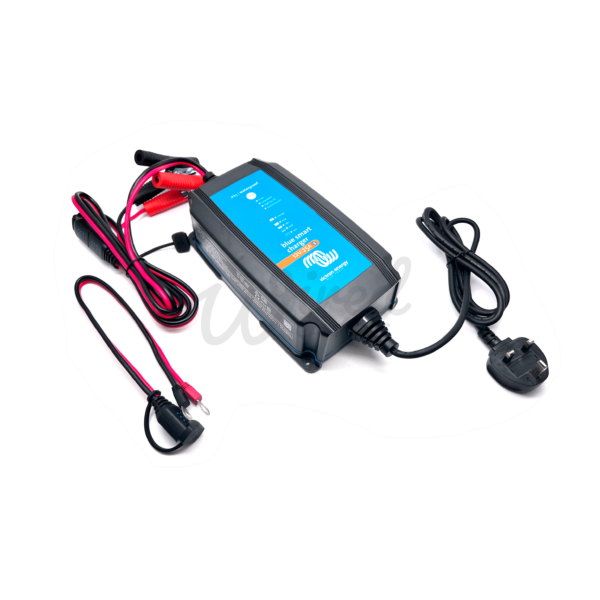

Choice Of 5/10/25A IP65 Victron Blue Smart Mains Charger

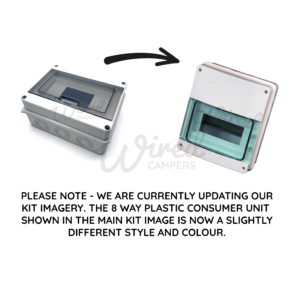

IP55 Rated 8 Way Enclosure with Earthing Bar
30 mA Type A Double Pole RCD/RCCB
10A Double Pole MCB (For the double socket)
6A Double Pole MCB (For the fridge switch/single socket)
6A Double Pole MCB (For the battery charger single socket)
4 Module 63A Double Pole Bus Bar
5 X 20MM Glands
13A Metal Flat Double Socket
20A Metal Flat Double Pole Switch/13A Single Socket
13A White Single Socket (For the batter charger)
Double Recess Mounting Box
Single Recess Mounting Box
Single Surface Mounted Box
5M 2.5MM Blue Arctic Flex Mains Cable For Hook Up
10M X 1.5MM White Flex Mains Cable For Outlets
2M Earth Cable
Magnetic Flush Flap
100 X Cable Ties
100 X Cable Tie Bases
RCD & Earth Safety Stickers

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
