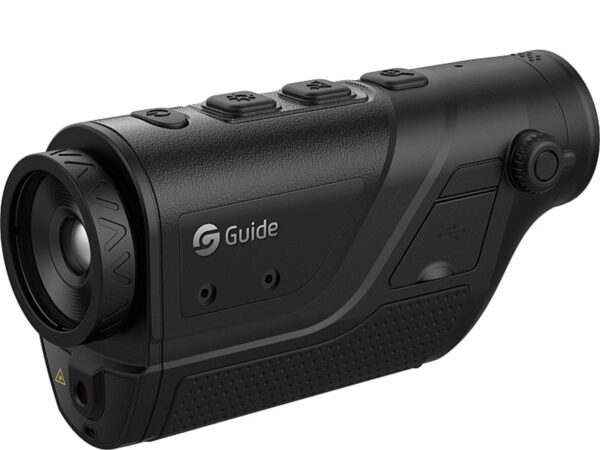

Guide Infrared TD210
Offers functional thermal rendering and good tracking and observation with its 256×192 12µm <50mK NETD and high resolution 1280×960 LCOS display.
Users can also make use of the TD120 ‘ s on-board features, such as Picture-in-Picture mode, which produces a magnified image within the viewfinder, allowing the user to hone-in on a subject whilst maintaining perfect awareness of the wider field of view. Users can also further enhance the TD120 ‘ s thermal imaging performance by way of the Image Boost Mode, which uses algorithms to cleverly sharpen and further define the edges of objects allowing them to be better perceived by the viewer for improved recognition.
Features a built-in laser which appears as a targeting box in the display and works up to 200m. This allows spotters to indicate to other team members the viewed target or point of interest.
The thermal imaging monocular design is highly ergonomic with a grooved exterior with a highly grippable base and main control buttons that are raised and sit within a natural handhold position for maximum performance.
Specifications
- Thermal Sensor: 256×192 12µm <50mK NETD
- Digital Zoom: 1-2x
- Focus: Electronic
- Dioptre: -4~+2
- Objective Lens: 10mm (f/1.0)
- Exit Pupil: 17mm
- Display: 1280×960 LCOS
- Laser Distance: 200m
- Battery Life: 8 hours
- Battery Type: ICR18650 Cell (2200mAh 3.7v)
- Rated: IP66
- Weight: 360g
Additional Functions
- Vanadium oxide cooled thermal sensor
- Built-In Laser
- Built-In WiFi Module
- 2 Second Start-Up Time
- Image Boost Mode
- Picture-in-Picture Mode (PiP)
- Three Scene Modes (Natural, Enhance, Highlight)
- Five Colour Modes (White Hot, Black Hot, Red Hot, Iron Red, Blue Hot)
- Remote Control Via App
- Video Out
- Contrast & Image Brightness Controls
- Hot Tracking
- Power Saving Features (Auto Stand-By, Auto Power-Off, Display Off)
- Built-In Tripod Thread for Mounting
- Ergonomic Design
- Extra-Grip Base
- Centralised Controls
- Removable Lens Cap
Includes
- Thermal Imager
- Bag
- Rechargeable Battery
- MicroUSB Cable
- Video Cable
- Wrist Strap
- Battery Charger
