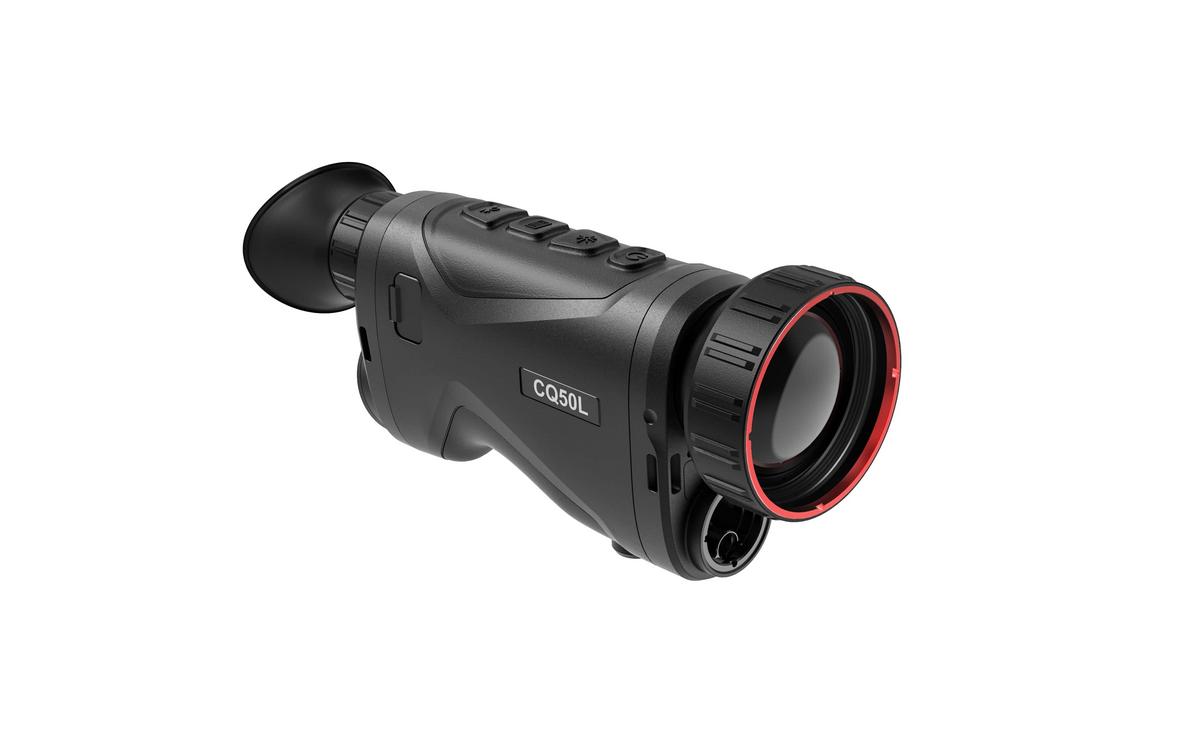

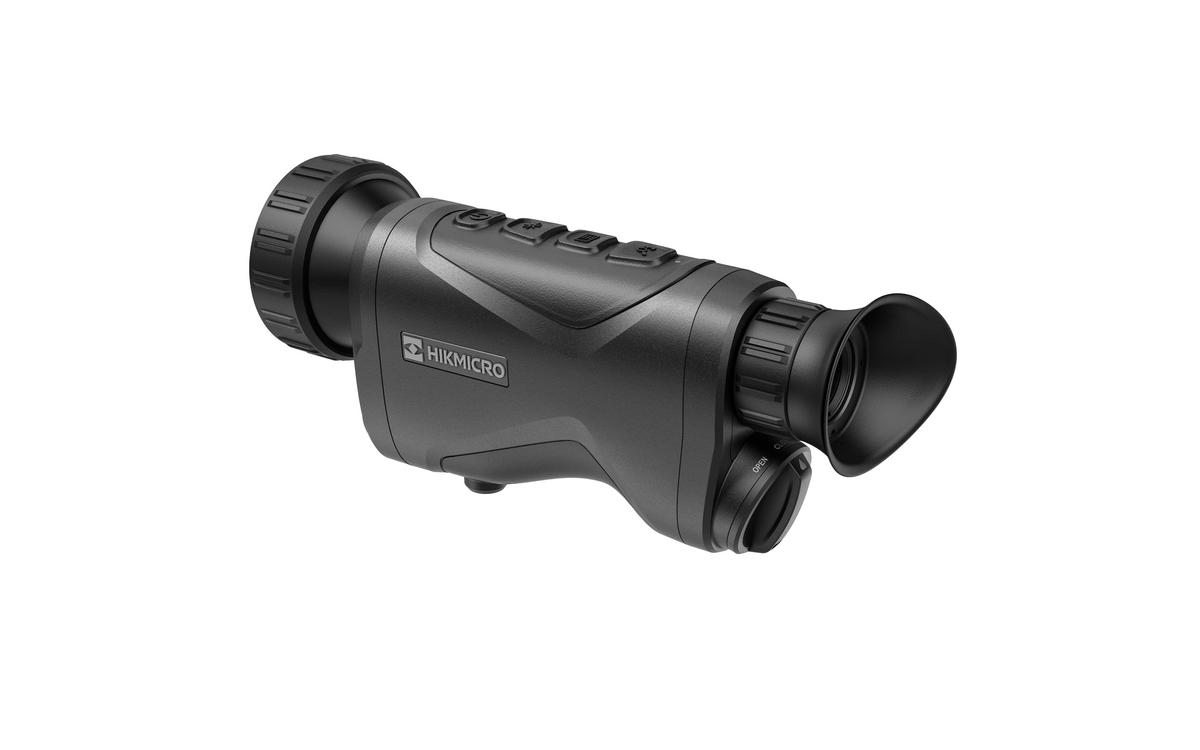

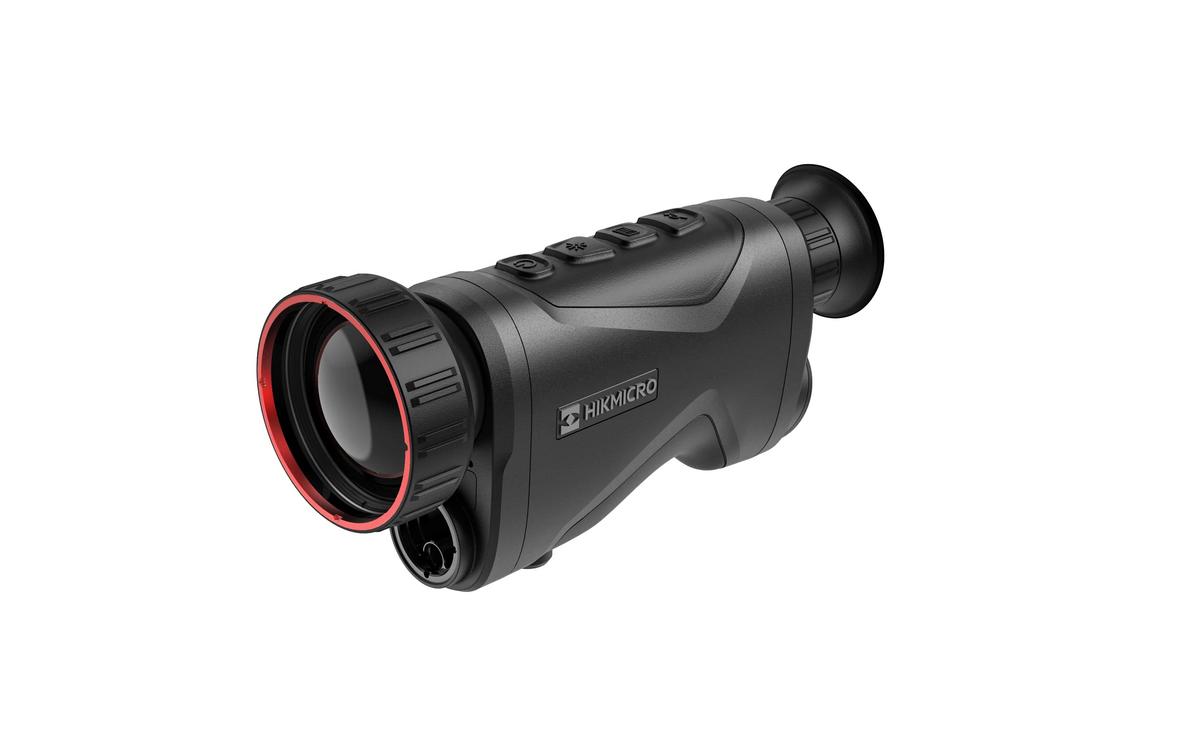

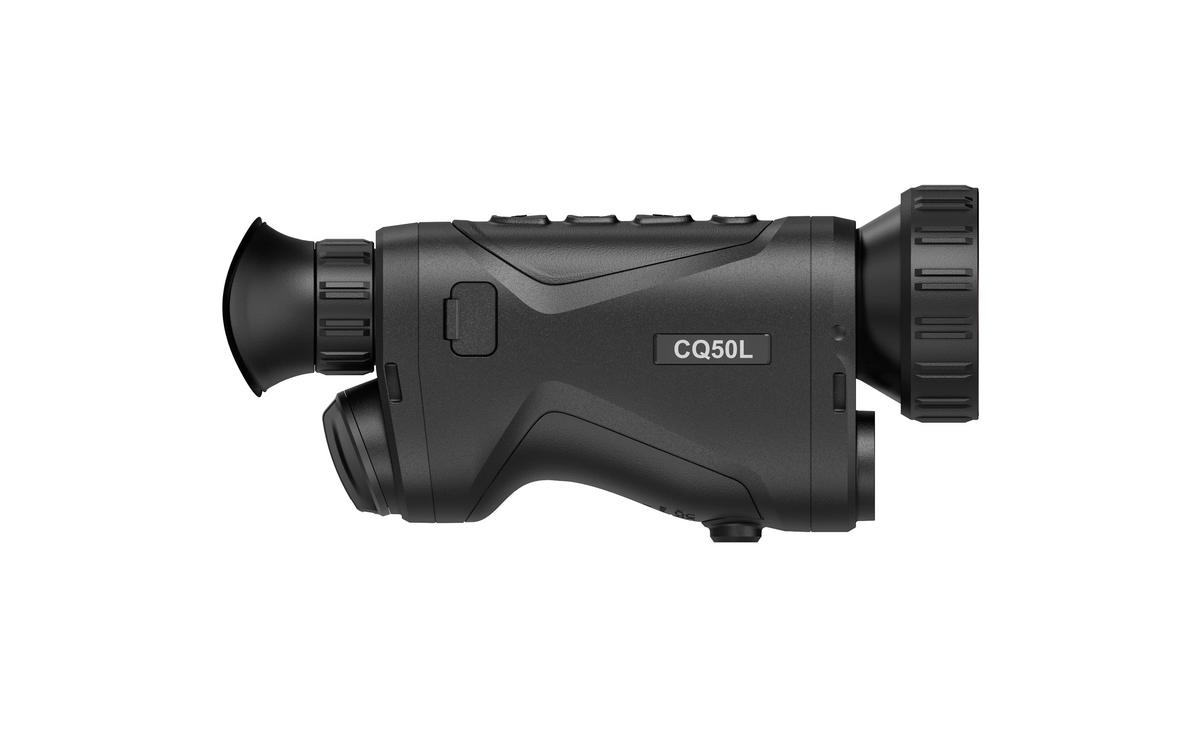

HIKMICRO Condor Pro LRF 50mm 640px (CQ50L)
The new HIKMICRO Condor LRF Pro thermal monocular is built around the same high performance, SUB 20mk NETD 640x512px thermal sensor that is found in the acclaimed Falcon series but with the addition of a 1000m Laser Range Finder to make it easer to judge the distance to your target, even in complete darkness.
The combination of HIKMICROâs highly sensitive 640x512px 12um SUB 20 NETD sensor and a high performance F1.0 lens ensures perfect detail recognition. The 50mm focal length offers the ultimate combination of high resolution and high magnification with 3x base magnification to help detect and identify heat sources at distance. Capable of detecting the smallest details like animal hair, subtle physical characteristics and information like branches and leaves. The Condor delivers a detailed picture of your surroundings and heat sources, even in the most challenging weather conditions.
Utilising an all-new magnesium alloy chassis with ergonomic grip and profiled buttons, the Condor is comfortable and intuitive to use from the first time you pick it up. It is compact in size and can be comfortably be used in one hand and slips easily into a pocket. Powered by a single 18650 battery which delivers 4 hours of run time, the three batteries supplied in the box allow up to 12 hours of continuous use.
The Condor is controlled by the latest HIKMICRO software which includes advanced algorithm options including Image Pro and Zoom Pro which can be used to optimise the sharpness of the image.
The Condor also boasts all of the software features found in other HIK products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in memory also allows you to save images and videos directly onto the monocular.
MAIN
- Sensor:- 640 x 512 @ 12µm
- Objective Lens (Focal Length):- 50mm
- Detection Range (Human 1.8 x 0.5m):- 2600m
SENSOR
- Type:- “VOx Uncooled Focal Plane Arrays “
- Resolution, pixels:- 640 x 512px
- Pixel pitch, µm :- 12µm
- Frame rate, Hz:- 50 Hz
- NETD:- <20mK
THERMAL OPTICS
- Objective lens:- F1.0
- Magnification:- 3x – 24x
- Magnification (Digital):- 1x, 2x, 4x, 8x
- Field of view:- 8.7°à 7.0°
LASER RANGEFINDER
- LRF Fitted:- Yes
- Maximum range:- 1000m
- Measurement accuracy:- ± 1m
DISPLAY
- Type:- 9.9mm, OLED
- Resolution, Pixels:- 1024 Ã768
- Colour Palettes:- White Hot, Black Hot, Red Hot, Fusion
Additional features
- Image Pro:- YES
- Zoom Pro:- YES
- Record Video:- YES
- Capture pictures:- YES
- Audio recording:- YES
- Standby mode:- YES
- Picture in Picture:- YES
- Hot Tracking:- YES
- WiFI hot spot:- YES
- HIKMICRO Connect App support:- YES
Environmental
- Degree of protection, IP code:- IP67
- Dust protection:- Protected against dust ingress
- Water protection:- Protected against temporary submersion in water
- Operating temperature range:- -30 °C to 55 °C
WEIGHT & SIZE
- Dimensions, mm:- 197mm x 60mm x 94mm
- Weight, kg:- 0.45 kg
POWER SUPPLY
- “Operating time on battery (WiFi & Hot tracking disabled)”:- 4 hours
- Charging interface:- Removable 18650 battery
Warranty Period:- 3 Years
