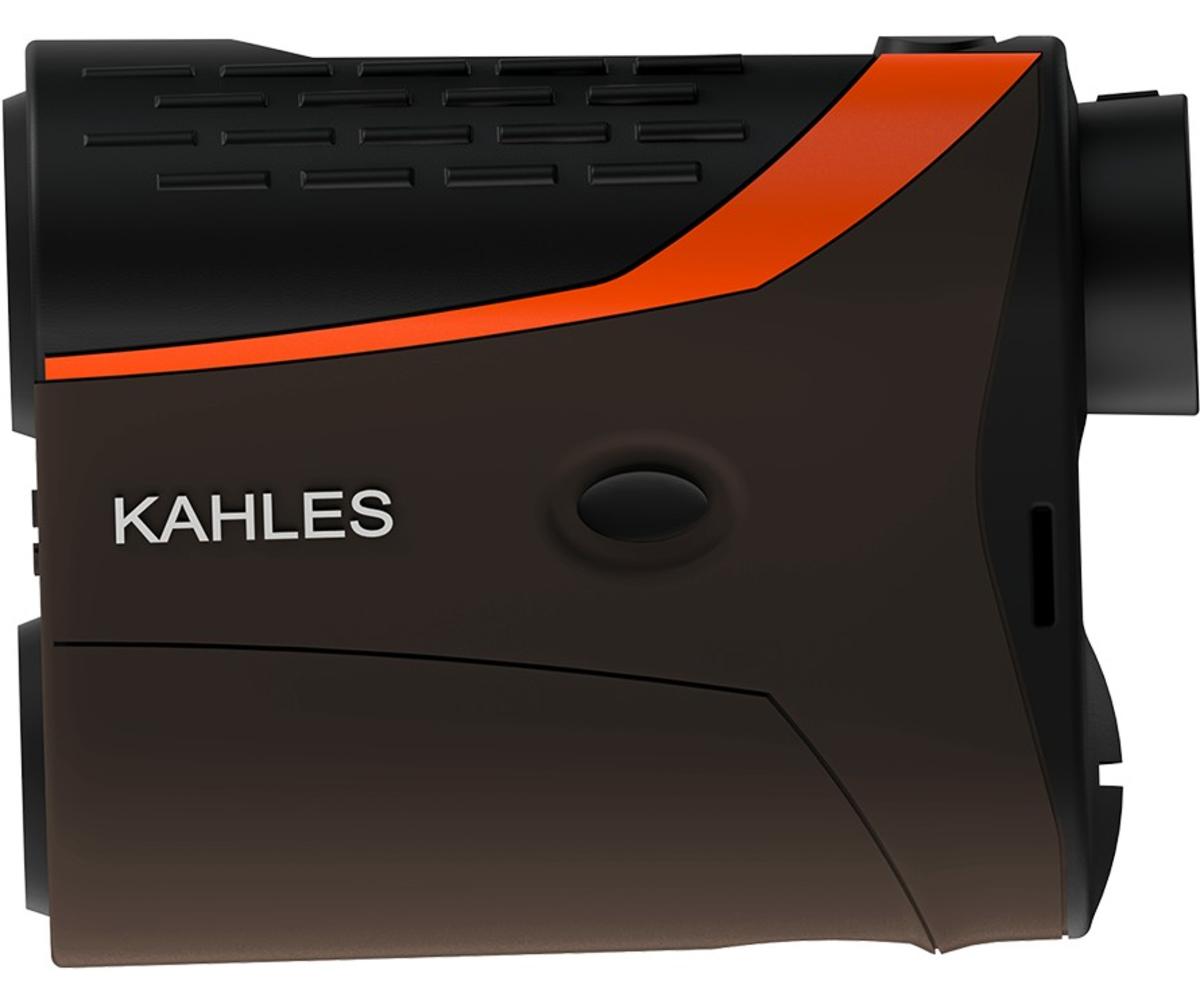

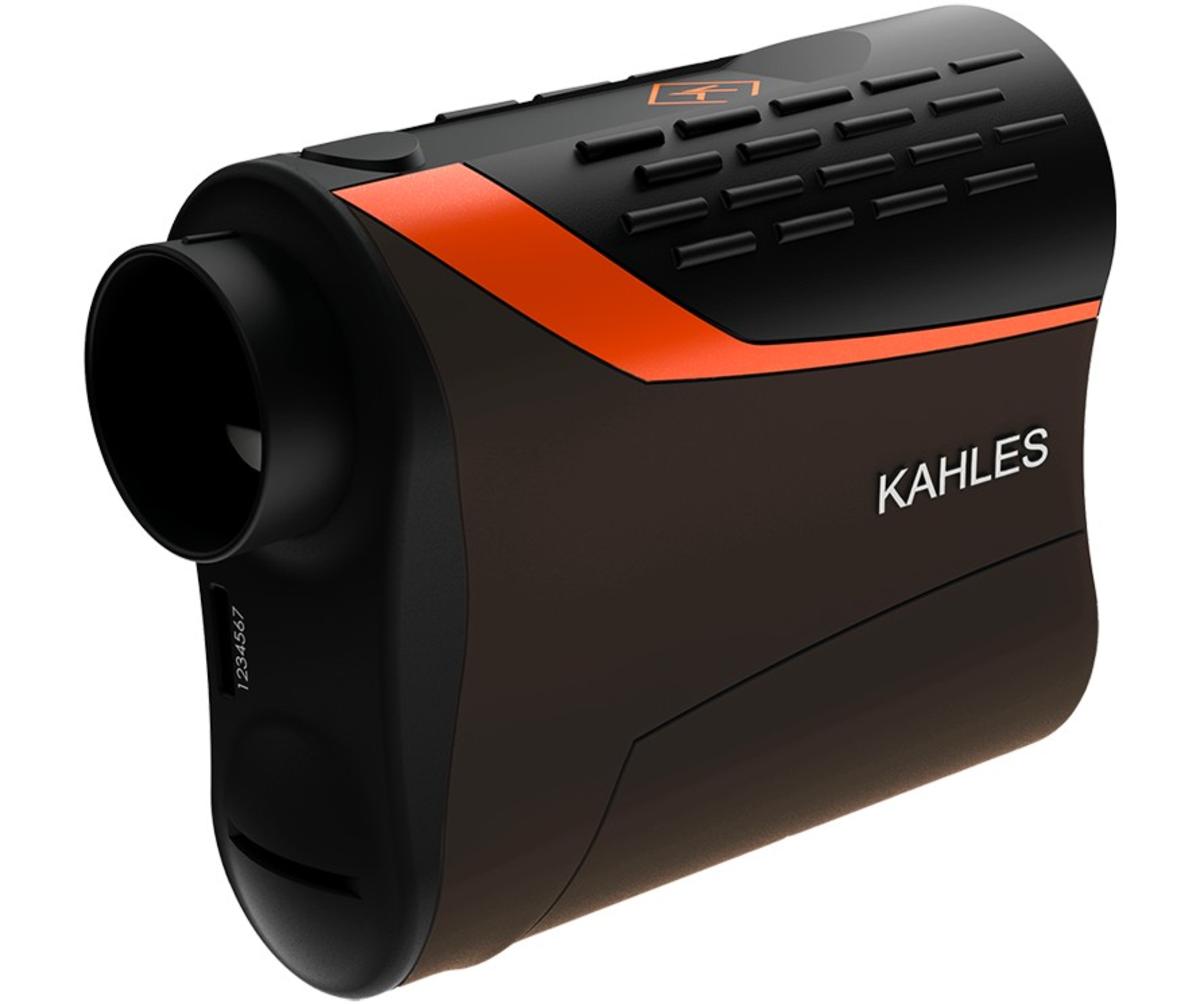

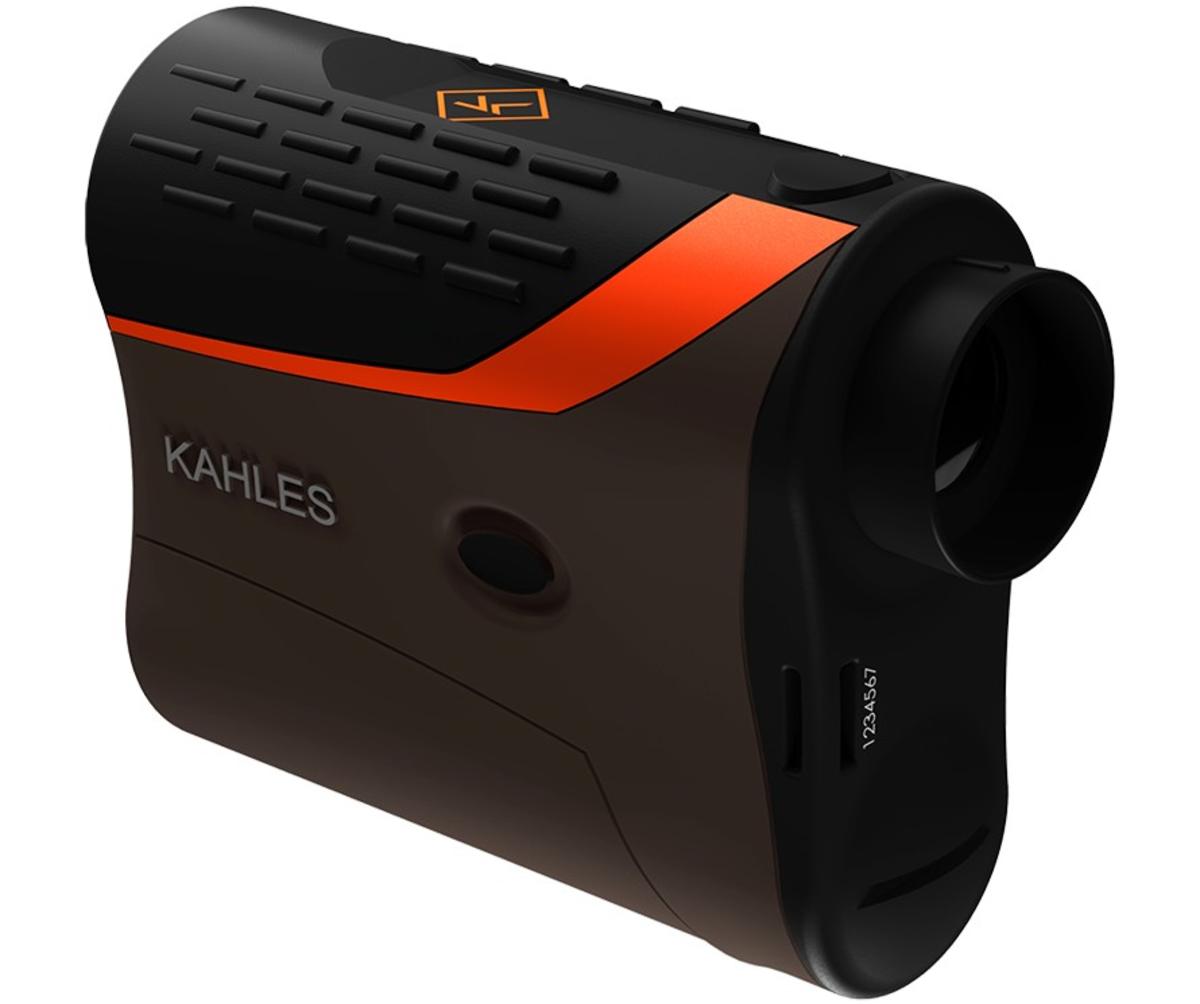

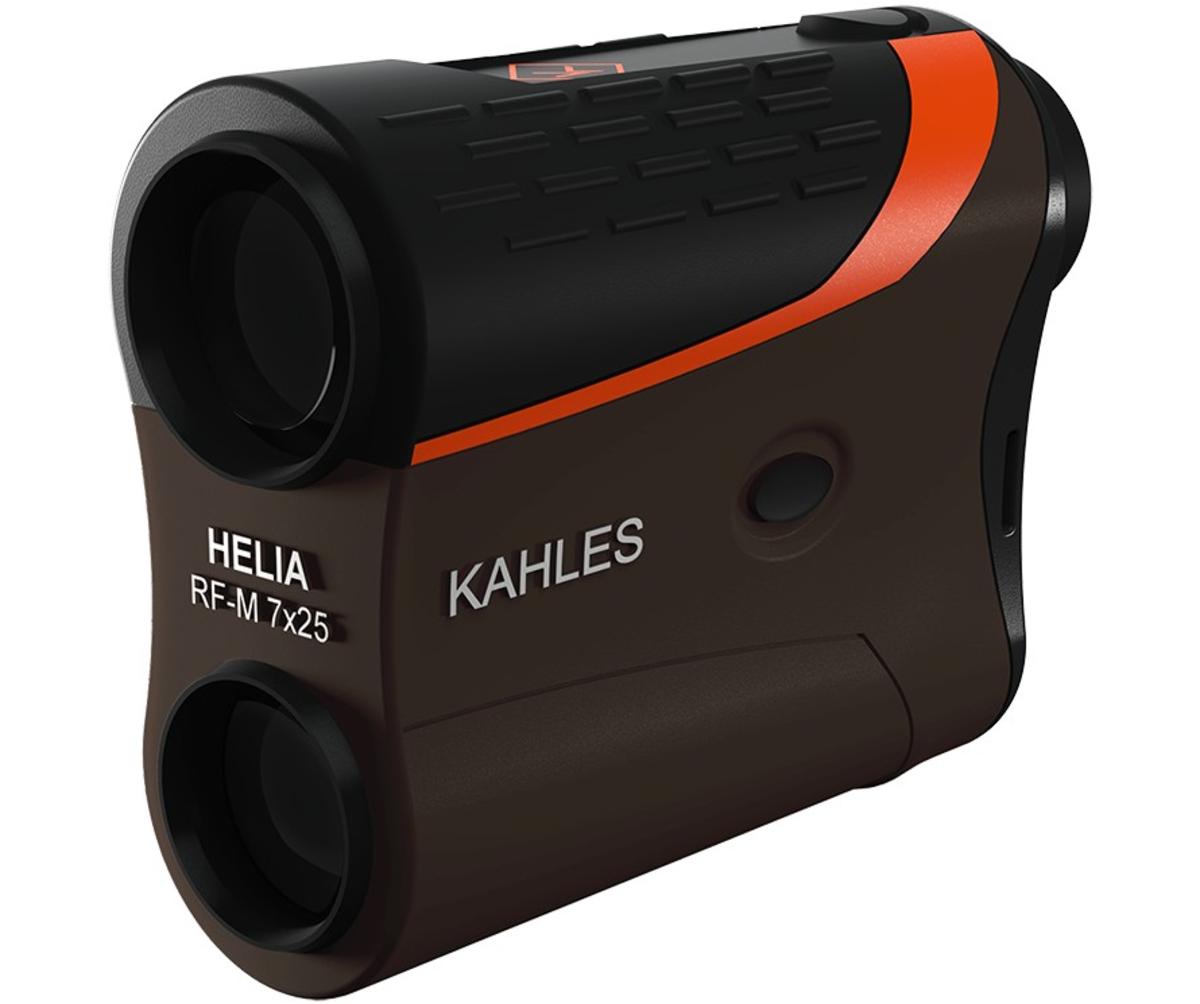

Kahles HELIA RF-M 7×25
KAHLES is presenting its first monocular rangefinder in the form of the new HELIA RF-M, which has been specially designed for hunting situations. Its key features include fast target detection up to a range of 2000 m, a large field of view with exceptional edge sharpness, intuitively simple operation/menu navigation, an extremely compact and ergonomic design, a high-quality OLED display and the integrated EAC function (patented enhanced angle compensation). At just 214 g, it is also incredibly lightweight.
PRODUCT HIGHLIGHTS
- Easy and reliable targeting up to 2.000 m
- Ergonomic design, intuitive handling, simple menu navigation
- Exceptional edge to edge clarity and large field of view of 117 m / 1.000 m
- Premium-quality OLED display with five manual brightness settings and display in meter or yards
- EAC-function (Enhanced Angle Compensation) for angle correction (patented)
- Scan mode, temperature- and air pressure measurement
- Extra-long battery lifetime ~ 4,000 measurements
TECHNICAL DATA
- Magnification:- 7
- Objective lens diameter (mm):- 25
- Eye relief (mm):- 15
- Exit pupil diameter (mm):- 3,6
- Twilight factor (ISO 14132-1):- 13,2
- Field of view (m/1000m):- 117
- Field of view (°):- 6,7
- Field of view apparent (°):- 46
- Near focus (m):- 10
- Diopter compensation (dpt):- +/- 4
- Measurement range (m):- 10 – 2.000
- Measurement range (y):- 10 – 2.000
- Range-finding accuracy (m):- +/- 1 up to 100 / +/-2 up to 1.000 / +/-0,5% over 1.000
- Range-finding accuracy (y):- +/- 1 up to 100 / +/- 2 up to 1.000 / +/- 0,5% over 1.000
- Display type:- OLED
- Brightness levels:- 5
- Measurement duration (s):- 1
- Display auto-off function (s):- 5
- Waterproof (nitrogen filling):- Yes
- Height x Width x Depth approximately (mm):- 78 x 37 x 102
- Weight (g):- 214 incl. Battery
- Meter/Yard display:- Yes
- Laser category:- 1M
- Single measurement:- Yes
- Scan measurement:- Yes
- Angle correction (EAC-function):- Yes
- Temperature indication:- Yes
- Air pressure indication:- Yes
- Battery type:- CR2
- Battery life (range cycles):- 4.000
- Guarantee (years):- 2
- Operating temperature (°c):- -10 – +55
- Storage temperature (°C):- -30 – +70
