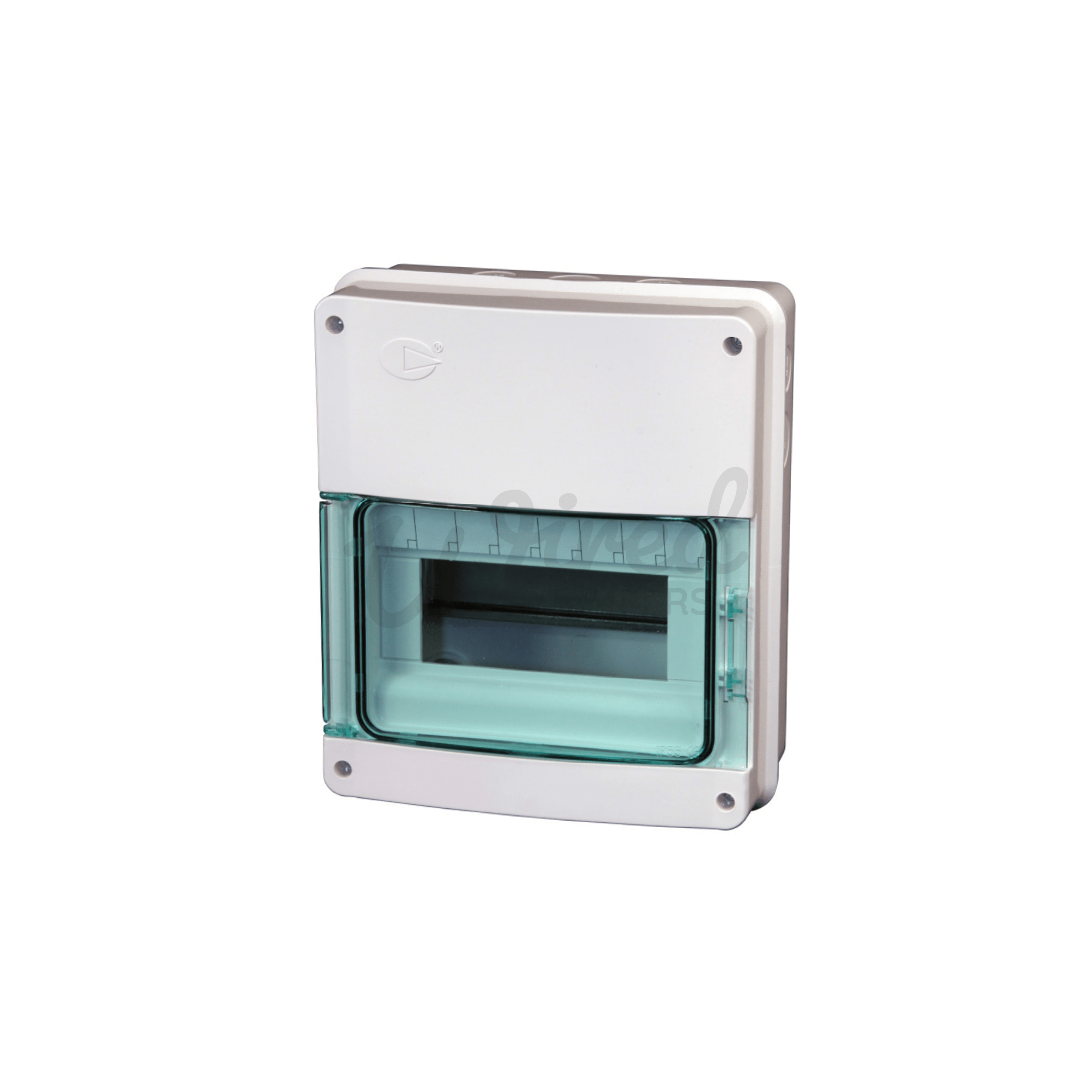

Lewden 8/55ENC 8 Module IP55 Consumer Unit Mains Enclosure
Lewden insulated weatherproof enclosures are manufactured from self extinguishing ABS material.
The tall enclosure height offers a significant amount of wiring space making installation a breeze.

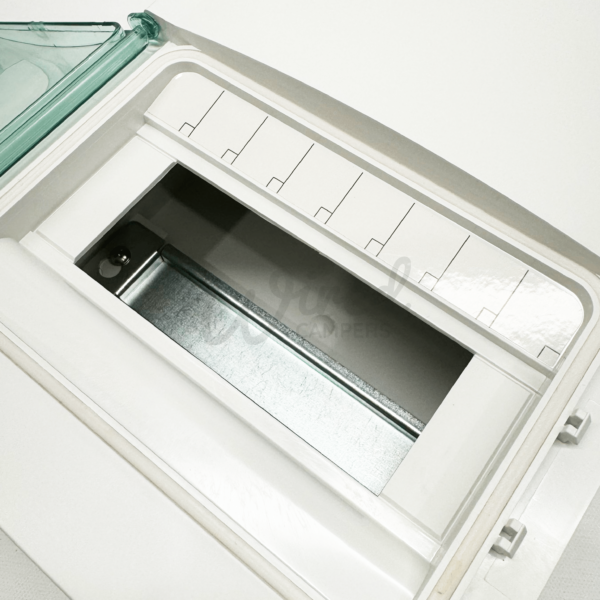

Enclosures come complete with –
- 35mm DIN Rail
- Neutral & Earth bars
- Neutral flex for connection of the incoming device to the neutral bar
- Single pole comb busbar
- Blanks
TECHNICAL SPECIFICATION
- 8 Module
- Ingress Protection – IP55
- Impact resistance – IK07
- Earth bar max conductor size – 16mm2
- Neutral bar max conductor size – 16mm2
- Single pole comb bus bar rating – 63A

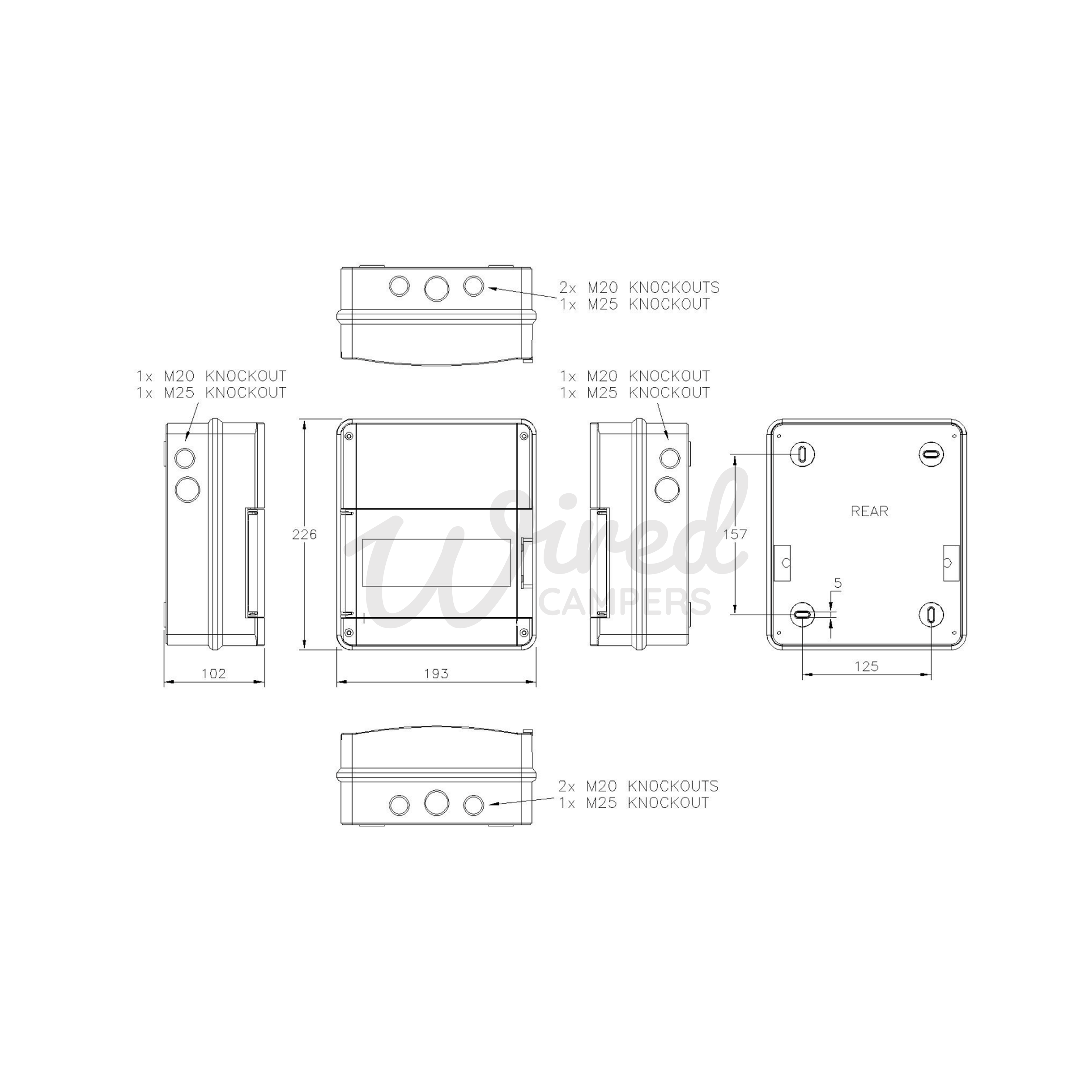

- Approx. Dimensions – 226 X 193 X 102
- Colour – White
- GTIN – 5026992044988
