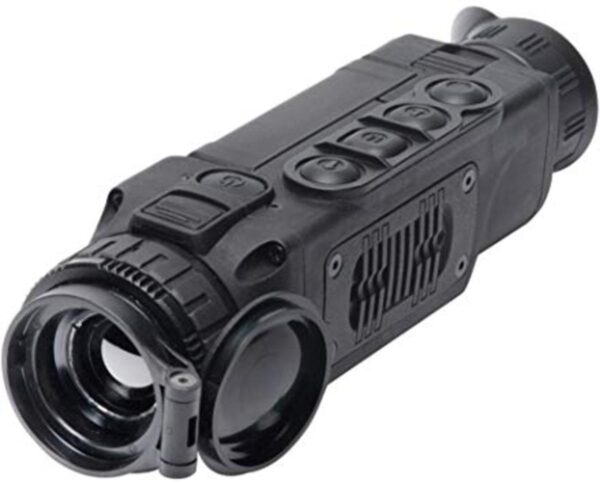

Pulsar Helion XP38 Thermal Monocular
The Helion XP series features a 640×480 17µm thermal sensor and is available with a 38mm lenses.
Helion XP38
- Magnification: 1.9x to 15.2x (Digital)
- Horizontal Field of View: 16.3°
- Detection Range: 1350m
- Thermal Sensor: 640×480 17µm
In brief the Helion Series Features:
- User-friendly interface
- Three operating modes – City, Forest, Identification
- Three calibration modes â Manual, Semi-automatic, Automatic
- Built-in Wi-Fi module
- Eight colour palettes for observation
- Built-in 3-axis accelerometer, gyroscope, magnetometer
- Defective pixel repair function
- Stadiametric rangefinder
- Display off option
- Functional and ergonomic design
- Updatable features
- Wide range of operating temperatures (-25°C to +50°C)
High resolution 640×480
The Helion XP is fitted with an uncooled micro-bolometric matrix – 640x480px with 17µm pixel pitch â that provides highly detailed images.
The best image definition
A heat sink, located on the device’s body, effectively prevents heat build-up from the sensor and other components while also significantly reducing temperature and noise sensitivity – especially between calibrations.
Variable magnification
Helion XP models include up to 8x magnification and feature both 2x step-up and smooth, graduated magnification for a truly optimum, customised field of view.
High image frequency
At a high refresh rate of 50Hz, the Helion series provides comfortable viewing throughout dynamic, rapid motion.
Detection distance up to 1800m
Depending on the model, Helion thermal imaging scopes can detect man-size heat signatures up to 1800 metres away.
PiP (Picture in Picture) Functionality
PiP allows you to see a zoomed image simultaneously with the main image in a dedicated window within the viewfinder.
Built-in video recording
Capturing still images and video is seamless with the Helionlâs built-in video recorder. Image and video content is stored internally and can easily be transferred to PC/laptop via wired connection or Wi-Fi.
Mobile-friendly (iOS & Android) with remote control and live internet streaming
The highlight of the Helion is the ability to link via Wi-Fi the device with Android and iOS based mobile units using the free mobile application Stream Vision. The Stream Vision software connects the device with Android/iOS devices which enables you to receive footage in real time mode, to distantly operate the device with your smartphone and to stream the footage captured by the device to direct to Youtube.
Quick-change B-Pack power units
All Helions include a progressive autonomous B-Pack power supply consisting of a quick-detach, rechargeable IPS5, 5.2A-h battery pack designed to deliver up to 8 hours of operation. Higher-powered IPS10 battery packs, CR123A and AA battery cases are also available and provide a perfect off-grid power solution.
Stadiametric rangefinder
Based on the estimated heights of observed objects, the stadiametric rangefinding reticle makes determining distances fast, easy, reliable and repeatable.
Fully waterproof
IPX7 waterproof-rated protection ensures the Helion performs perfectly in wet weather, even during intense rain, snowfall and submersion in 3 feet of water for up to 30 minutes. (IEC 60529).
Wide range of operating temperatures
With a frost-resistant AMOLED display, the Helion thermal imaging scope is designed to deliver flawless performance at an extreme temperature range of -25°C to +50°C.
Fully-functional wireless control (optional)
The ergonomic, wireless remote control, with encoder wheel, puts the full range of the Helionâs capabilities at your fingertips for comfortable, convenient, hands-off operation.
Display-off mode
During short periods of inactivity and better concealment, Display Off powers down the display without interrupting other operating functions. Using Display Off means a much faster restart time when you need it most.
User-friendly interface
The Helion is designed with ease-of-operation in mind. User feedback has resulted in the most user friendly interface to date, complete with an easy-to-read, icon-driven, alpha-numeric status bar at the bottom of the display. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.
Updatable software
For initial setup and additional updates, the iOS and Android compatible Stream Vision App ensures the most recent Helion software versions are available.
