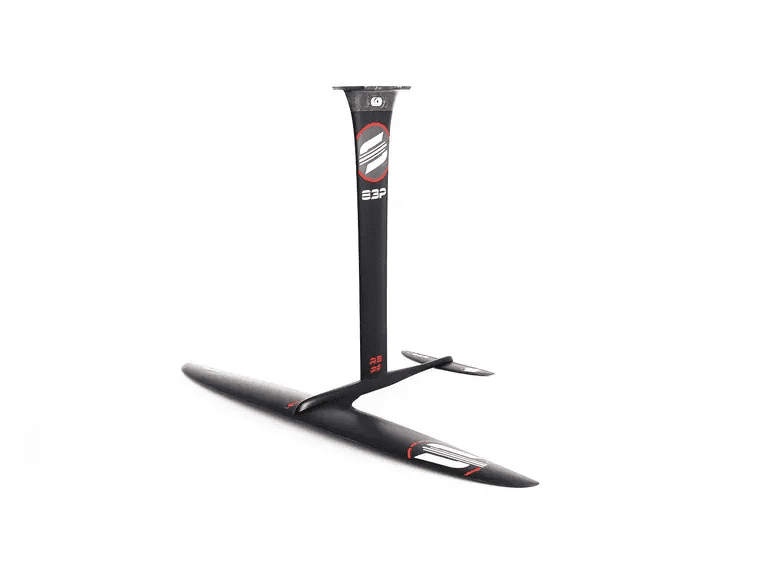

SabFoil Leviathan 1550 Foil Kit
SabFoil Leviathan
This hydrofoil set is a must-have for anyone looking to practice pump foil in very low wind conditions. The incredible efficiency makes it perfect also for flat water conditions and stand-up paddling.
The front wing (WL1550/Pump Foil) features a high aspect ratio, resulting in exceptional gliding and efficiency, and the profile favors easy take-off. The stiff mast (M83PLK/PF) reduces bending and torsion for maximum stability and control also during pumping sessions. The flat stabilizer (S370/PF) provides excellent maneuverability.
For those looking for easy starts, long glides, SUP sessions, or just looking for a fun day on flat water, the KL1550-370/83PL is a great choice.
Advanced Specifications
- Front Wing – Span 1550 mm
- Front Wing – Surface 2140 cm2
- Front Wing – Volume 2757 cm3
- Front Wing – Aspect Ratio 11,30
- Front Wing – Root Chord 170 mm
- Front Wing – Maximum Thickness 22,9 mm
- Stabilizer – Span 370 mm
- Stabilizer – Surface 195 cm2
- Stabilizer – Volume 85 cm3
- Stabilizer – Aspect Ratio 7,00
- Stabilizer – Root Chord 67,5 mm
- Stabilizer – Maximum Thickness 7,3 mm
- Fuselage – Length 663 mm
- Mast – Height 830 mm
- Mast – Board Connection- Carbon Plate
- Foil Set – Weight (ca.) 5,24 kg
