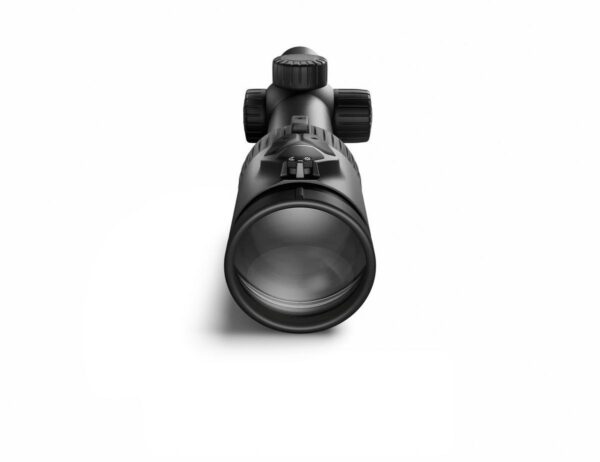

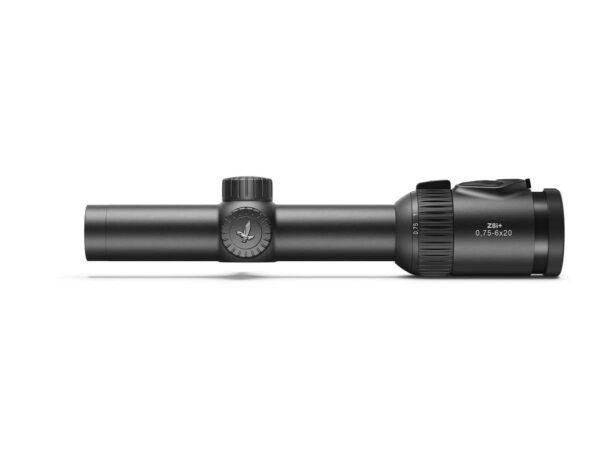

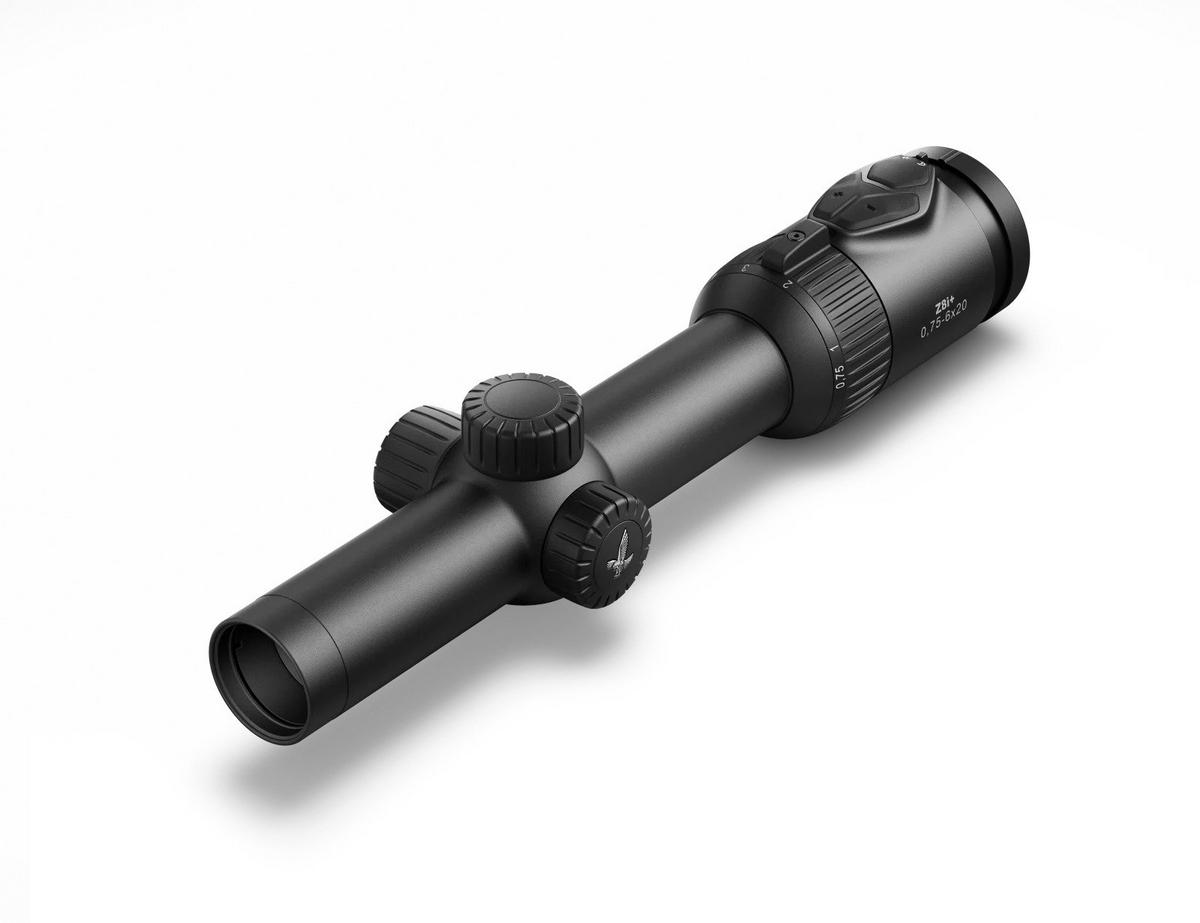

Swarovski Z8i+ 0,75-6×20 L D-I
The Z8i+ 0.75-6×20 has been developed especially for driven hunts. It impresses with VIEWPLUS (0.75x magnification) and a huge field of view of 64.6 m/100 m (193.8 ft/100 yds).
Key features of the Z8i+:
- Groundbreaking field of view
- Excellent viewing comfort and rapid target acquisition thanks to the large eyebox
- Fast and easy handling thanks to the ergonomic TL+ throw lever (in black and orange)
- Short zoom rotation of just 160°
SWAROLIGHT
The SWAROLIGHT automatic switch-on/off timer with tilt sensor detects whether the rifle scope is in a shooting position. If it is not, the illuminated reticle is deactivated. This saves the battery and extends its service life.
Scope of delivery
- Transparent scope covers
- 2 TL+ throw lever (black and orange)
- Battery / Replacement battery
- Torx wrench
- Screw
OBJECTIVE
- 0.75-6x Magnification
- 6.3-20 mm Effective objective lens diameter
- 8.1-3.2 mm Exit pupil diameter
- 95 mm Exit pupil distance
- 64.4-8.1 m/100m Field of view
- 35.8-4.7 ° Field of view degrees
- 28 ° Field of view apparent
- -3 to +2 dpt Diopter adjustment
- 93 % Light transmission
- 2.1-11.0 Twilight factor acc. to ISO 14132-1
MEASUREMENT
- 0.36 / 10 Impact point correction per click (in / mm)
- 2 / 72 Max. elevation / windage adjustment range (m/100m / in/100yds)
SIZE & WEIGHT
- 282 mm Length in mm.
- 590 g Weight
- 34 mm Central tube diameter
ENVIRONMENT & CONDITIONS
- -20 to +55 °C Functional temperature
- -30 to +70 °C Storage temperature
- 13 ft / 4 m water depth (inert gas filling) Submersion tightness
ILLUMINATION
Twilight: 0 – 32 / Day: 33 – 64 Brightness levels
DIGITAL
Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180 Operating time
