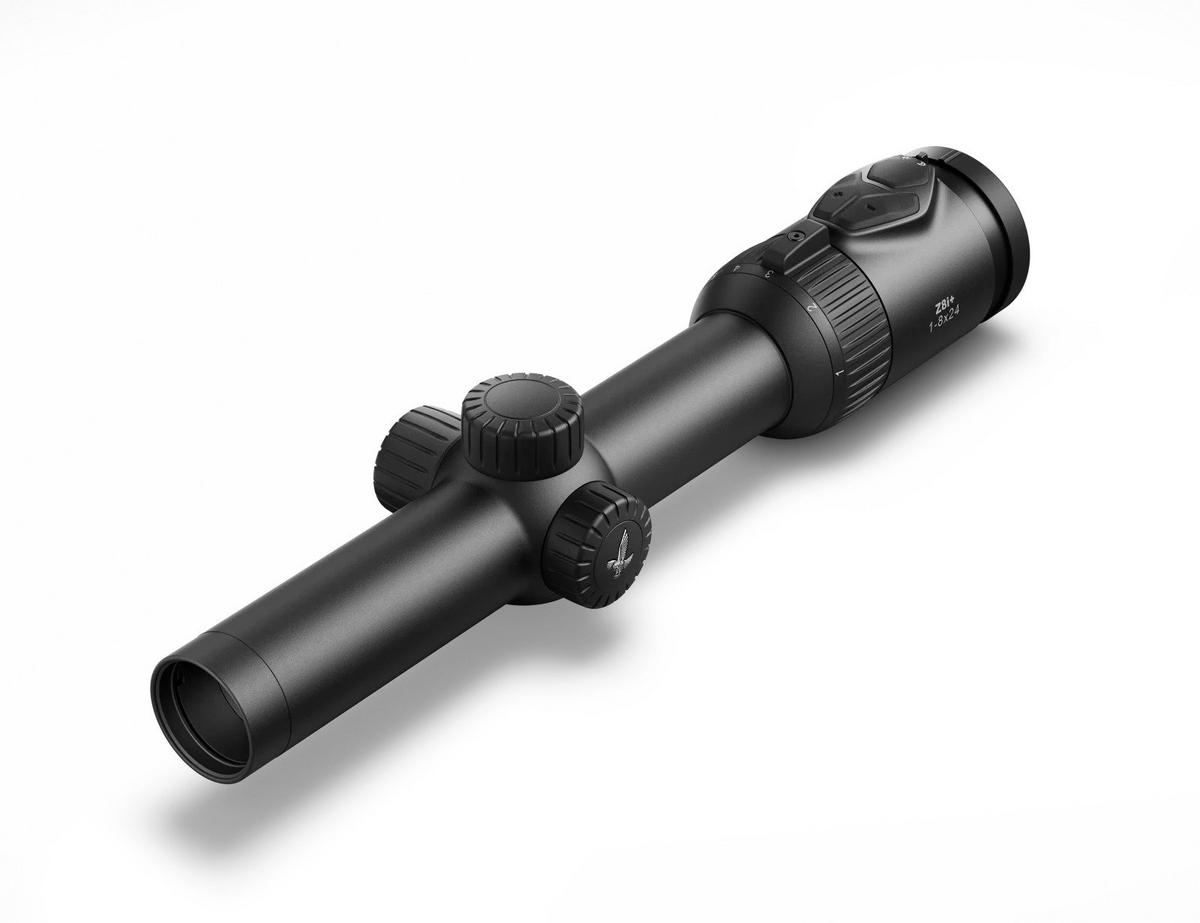

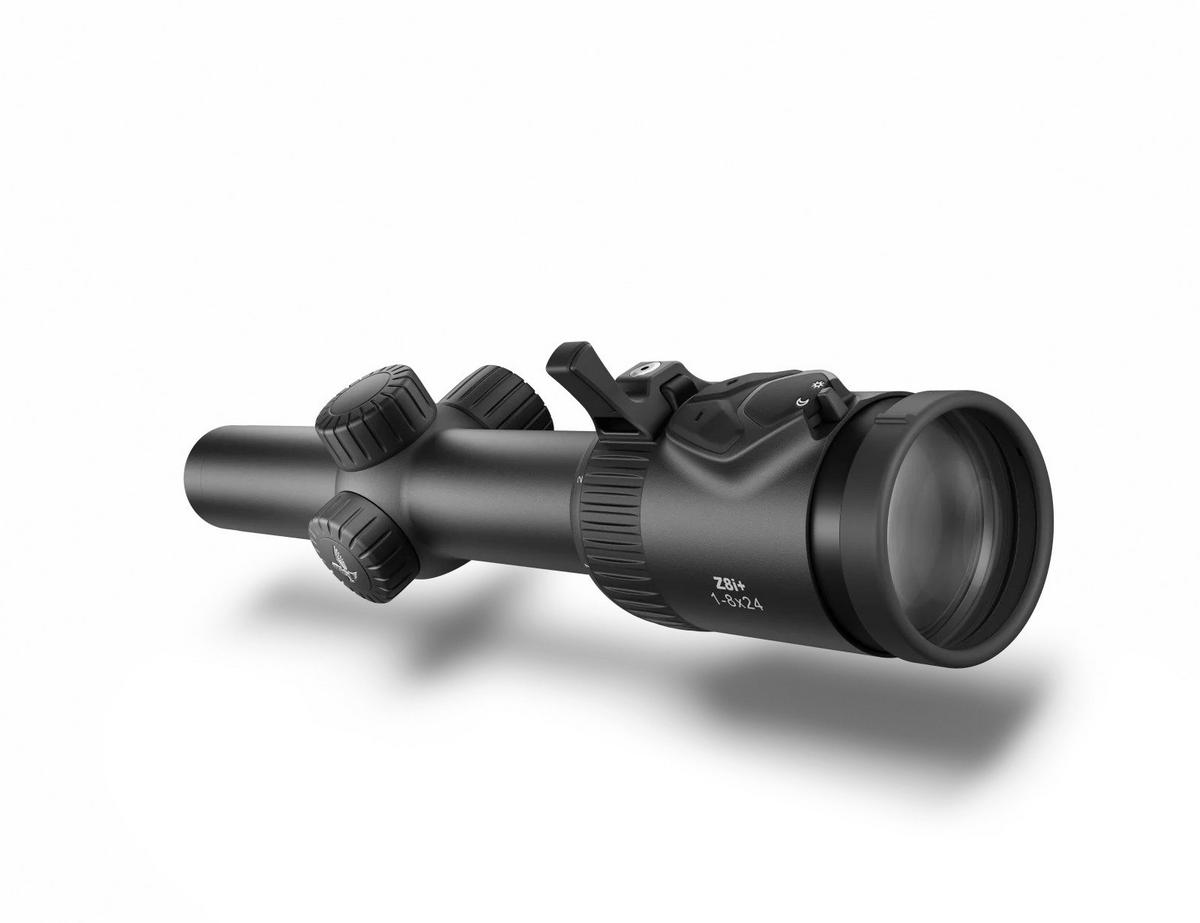

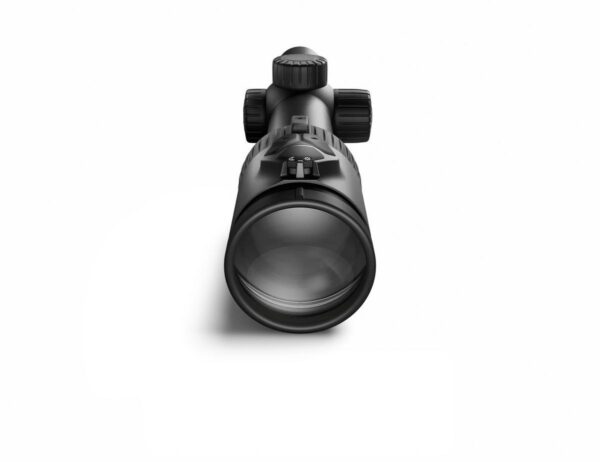

Swarovski Z8i+ 1-8×24 L LD-I
The Z8i+ 1-8×24 takes you closer to the action on driven hunts and stalking expeditions. It offers an impressive 50 m/100 m (150 ft/100 yds) field of view with 1x magnification.
Key features of the Z8i+:
- Groundbreaking field of view
- Excellent viewing comfort and rapid target acquisition thanks to the large eyebox

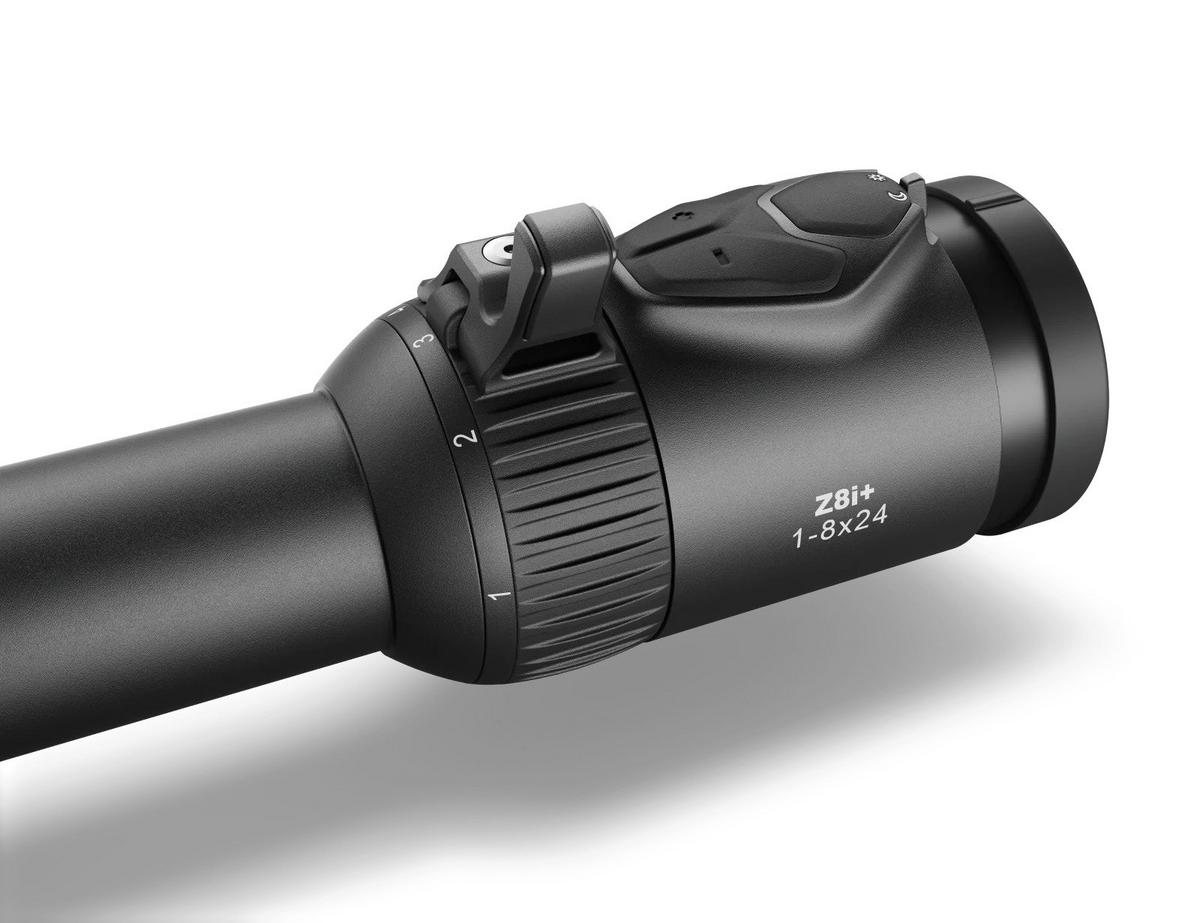

- Fast and easy handling thanks to the ergonomic TL+ throw lever (in black and orange)
- Short zoom rotation of just 160°
SWAROLIGHT
The SWAROLIGHT automatic switch-on/off timer with tilt sensor detects whether the rifle scope is in a shooting position. If it is not, the illuminated reticle is deactivated. This saves the battery and extends its service life.
Scope of delivery
- Transparent scope covers
- 2 TL+ throw lever (black and orange)
- Battery / Replacement battery
- Torx wrench
- Screw
OBJECTIVE
- 1-8x Magnification
- 8.2-24 mm Effective objective lens diameter
- 8.1-3.0 mm Exit pupil diameter
- 95 mm Exit pupil distance
- 50.0-6.2 m/100m Field of view
- 28.0-3.6 ° Field of view degrees
- 28 ° Field of view apparent
- -3 to +2 dpt Diopter adjustment
- 93 % Light transmission
- 2.8-13.9 Twilight factor acc. to ISO 14132-1
MEASUREMENT
- 0.36 / 10 Impact point correction per click (in / mm)
- 2 / 72 Max. elevation / windage adjustment range (m/100m / in/100yds)
SIZE & WEIGHT
- 301 mm Length in mm.
- 599 g Weight
- 34 mm Central tube diameter
ENVIRONMENT & CONDITIONS
- -20 to +55 °C Functional temperature
- -30 to +70 °C Storage temperature
- 13 ft / 4 m water depth (inert gas filling) Submersion tightness
ILLUMINATION
Twilight: 0 – 32 / Day: 33 – 64 Brightness levels
DIGITAL
Twilight factor at medium brightness: 1,400; daylight factor at medium brightness: 180
Operating time
