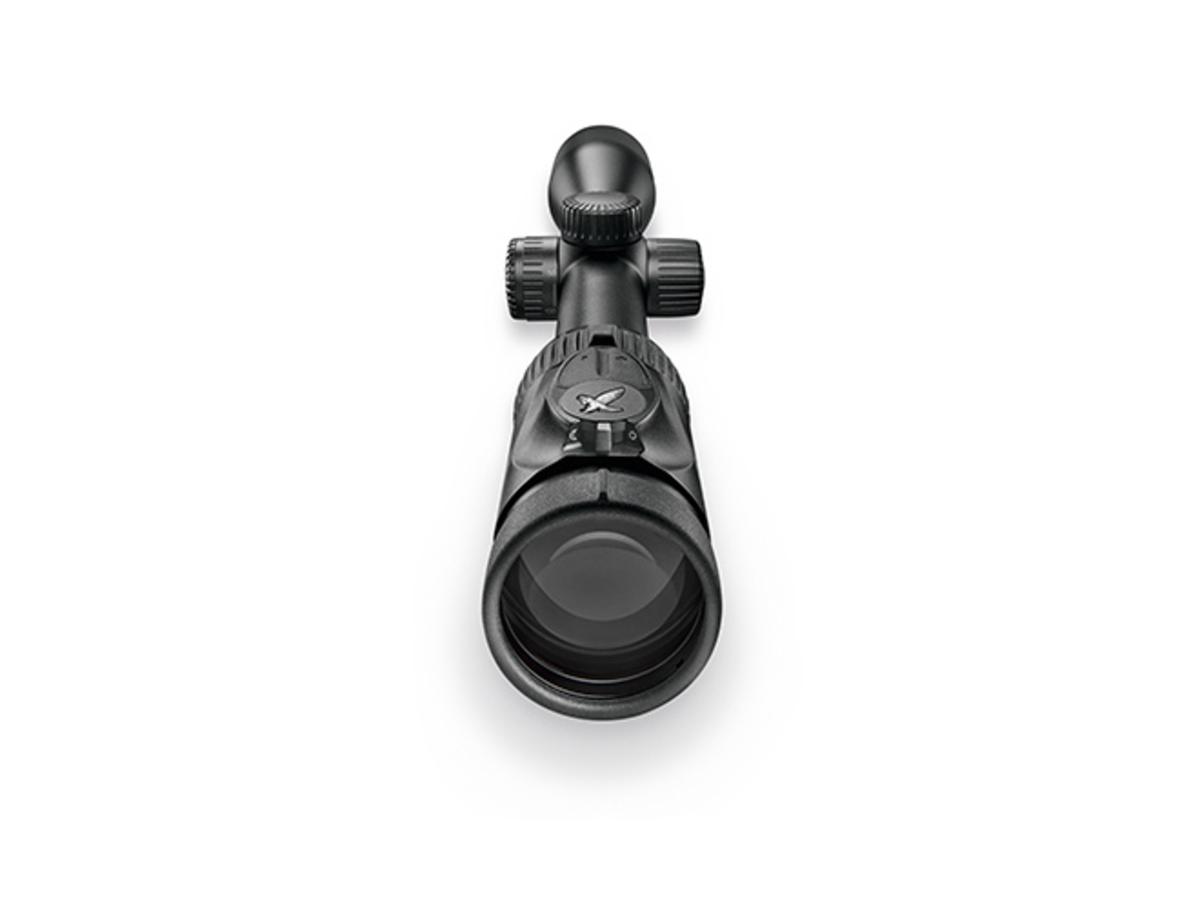

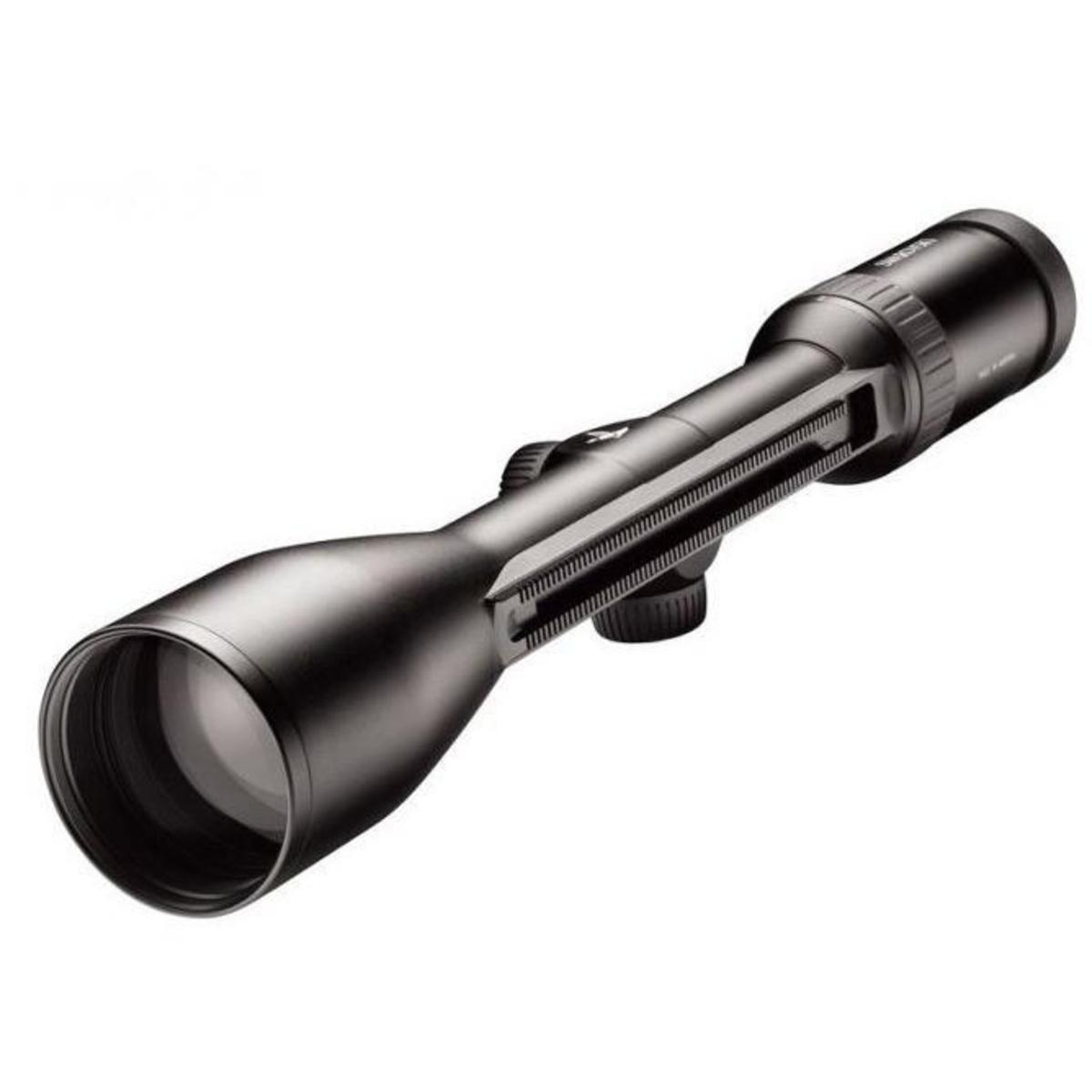

Swarovski Z8I 2,3-18X56 P SR – 4W-I Reticle
Only a high-luminosity rifle scope like the Z8i 2.3-18×56 P can deliver the crucial details even in poor light conditions and at twilight. This rifle scope therefore has excellent optics that delivers razor-sharp images even in challenging situations. The high magnification and detail accuracy also deliver impressive precision over long distances.
The illuminated Z8i 2.3-18×56 P L stands out for its high light transmission, especially when hide hunting at twilight. The magnification of up to 18x provides the details required for precise long-range shooting. The SR SWAROVSKI OPTIK Rail mounting rail guarantees secure, easy fitting.
Technical Data
- Magnification:- 2.3-18
- Effective objective lens diameter (mm):- 18.4-56
- Exit pupil diameter (mm):- 8.1-3.1
- Exit pupil distance (mm) (Eye relief):- 95
- Field of view (ft/100 yds / m/100 m):- 55.8-6.9 / 18.6-2.3
- Field of view (degrees):- 10.6-1.3
- Field of view, apparent (degrees):- 24
- Dioptric compensation (dpt):- -3 to +2
- Light transmission (%):- 93
- Twilight factor acc. to ISO 14132-1:- 6.5-31.8
- Impact point corr. per click (in/100 yds / mm/100 m):- 0.36 / 10
- Max. elevation / windage adjustment range (in/100 yds / m/100 m):- 64.8/36.0 / 1.8/1.0
- Parallax correction (yds / m):- 55-∞ / 50-∞
- Objective filter thread:- M 58×0.75
Technical Data
- Length (in / mm):- 14.3 / 364
- Weight (oz / g):- 26.1 / 740
- Central tube diameter (in / mm):- 1.18 / 30
- Functional temperature:- -4 °F to +131 °F (-20 °C / +55 °C)
- Storage temperature:- -22 °F to +158 °F (-30 °C / +70 °C)
- Submersion tightness:- 13 ft / 4 m water depth (inert gas filling)
Illumination unit
- Brightness levels:- Twilight: 0 – 32 / Day: 33 – 64
- Operating time (h):- Twilight factor at medium brightness: 1,400
- Operating time (h):- Daylight factor at medium brightness: 180
