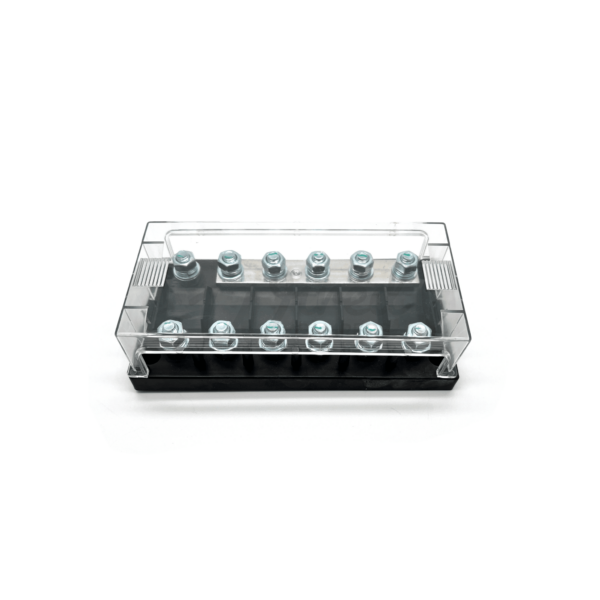

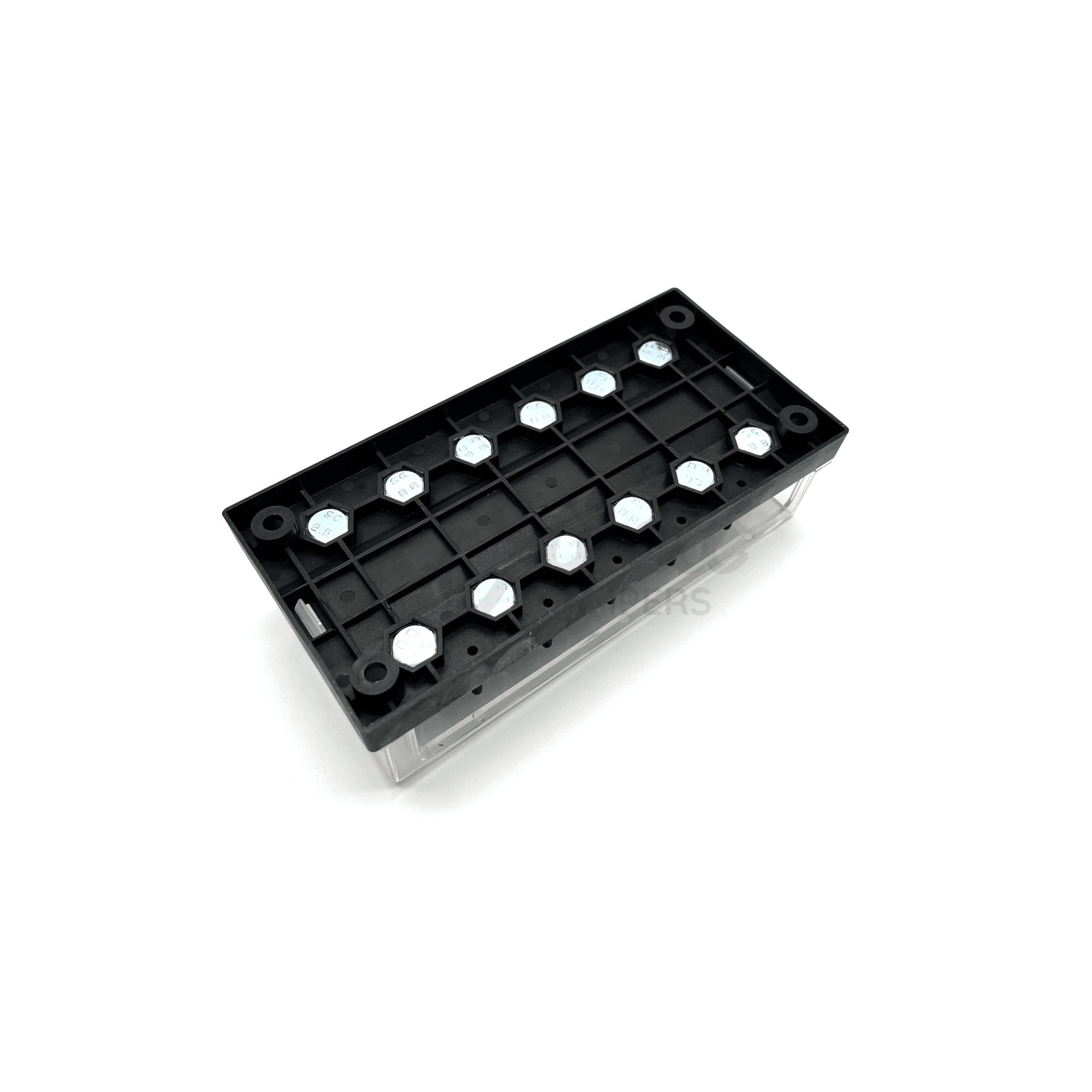

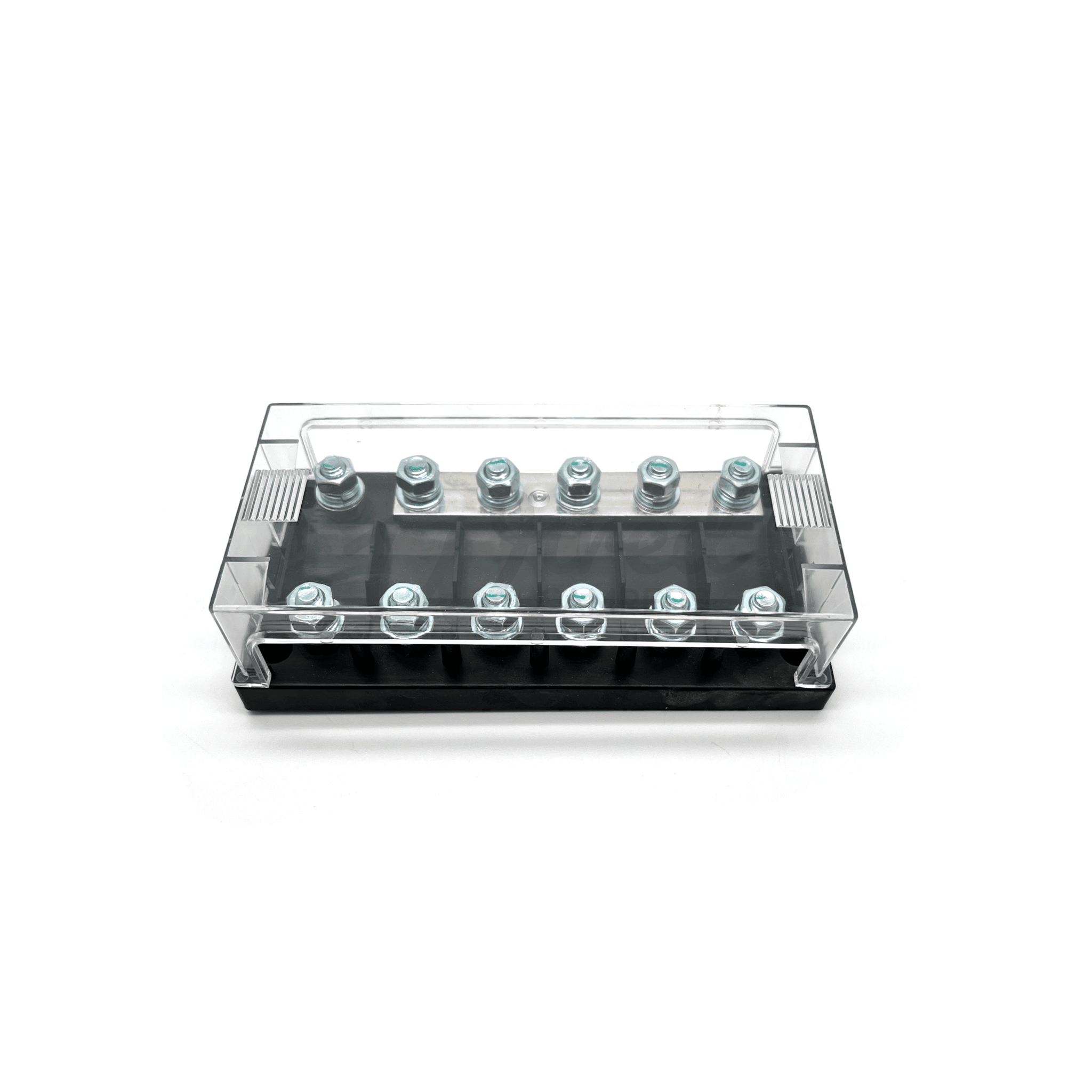

Victron Energy 250A 6 Way High Current MEGA Fuse Holder – CIP050060000
TECHNICAL SPECIFICATION
- Max. current – 250 A
- Max. Voltage – 70 VDC
- Terminal diameter – 5/16 inch / 8 mm
- Terminal height – 0.67 inch / 14 mm
- Terminal material – Galvanised steel
- Hex nut material – Galvanised steel
- Recommended torque – 60 lbf·inch / 7 N·m
- Busbar strip material – Tin-plated copper (3 x 18 mm)
- Weight – 0,45 kg
- Dimensions (hxwxd) (with cover) – 50.9 x 181.5 x 88 mm
- Part number – CIP050060000
