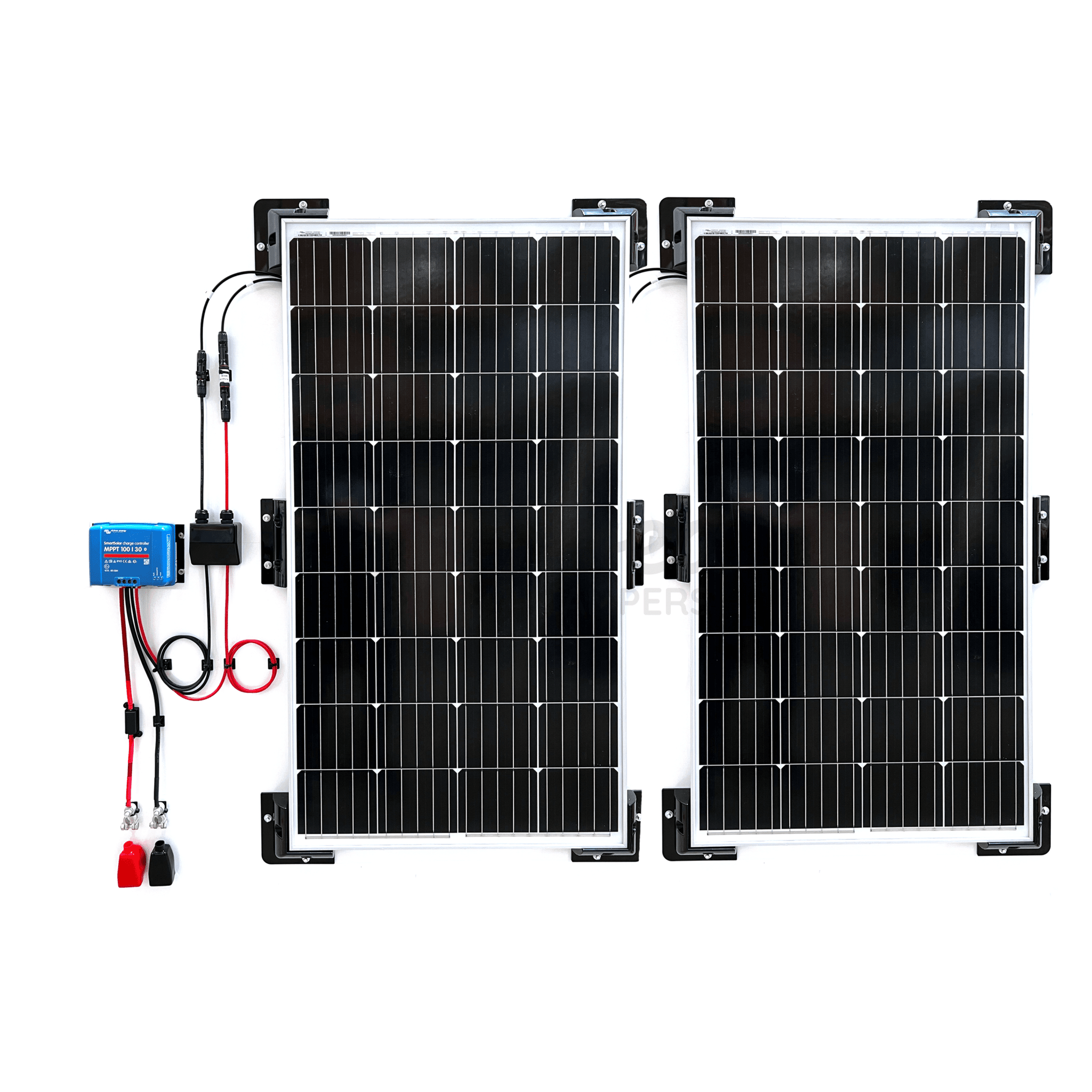

Victron Energy SmartSolar 100/30 MPPT & 370W BlueSolar Mono Solar Panel Camper Van Kit
Solar MPPT Controller
Victron Energy SmartSolar 100/30 MPPT Solar Panel Charge Controller With Bluetooth
This Victron SmartSolar 100/30 MPPT charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
- Battery voltage (Auto select) – 12-24V
- Rated charge current – 30A
- Nominal PV Power (12V) – 440W
- Max PV short circuit current – 35A
- Automatic load disconnect – Yes
- Max PV open circuit voltage – 100V
- Peak efficiency – 98%
- Power terminals – 16 mm²
- Weight – 1.3KG
- Dimensions (h x w x d) – 130 x 186 x 70MM
Solar Panel
2 X Victron Energy 185W BlueSolar Mono Solar Panel mounted in a light weight aluminium frame. Approximate size of the panel is 1485MM X 668MM X 30MM. The panel comes fitted with with industry standard MC4 connectors for quick installation.
Solar Equipment
- 2 X Six piece ABS UV resistant roof mounts, available in black or white.
- Cable entry glands and cover, available in black or white.
- MC4 Solar connector.
- Solar fuse and MC4 waterproof holder.
Cables
Wiring from the MPPT controller to the solar panel will be in 6mm2 UV resistant solar cable, available in 3M, 5M, or 10M lengths.
Wiring from the MPPT controller to the battery terminals will be in 16mm2 hi flex cable in a standard length of 3M.
Accessories
- High quality positive and negative battery terminals with PVC covers.
- MIDI fuse and MIDI fuse holder.
- 4 X Bootlace ferrules for clean wire termination to the MPPT controller.
- Associated heat shrink and terminals to complete the installation.
Please note, this is in kit form so will require assembly (crimping/cutting cables).
