Victron Energy SmartSolar 75/15 MPPT & 100W Semi Flexible Mono Solar Panel Camper Van Kit
Solar MPPT Controller
Victron Energy SmartSolar 75/15 MPPT Solar Panel Charge Controller With Bluetooth
This Victron SmartSolar 75/15 MPPT charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
- Battery voltage (Auto select) – 12-24V
- Rated charge current – 15A
- Nominal PV Power (12V) – 220W
- Max PV short circuit current – 15A
- Automatic load disconnect – Yes
- Max PV open circuit voltage – 75V
- Peak efficiency – 98%
- Power terminals – 6 mm²
- Weight – 0.5KG
- Dimensions (h x w x d) – 100 x 113 x 40MM

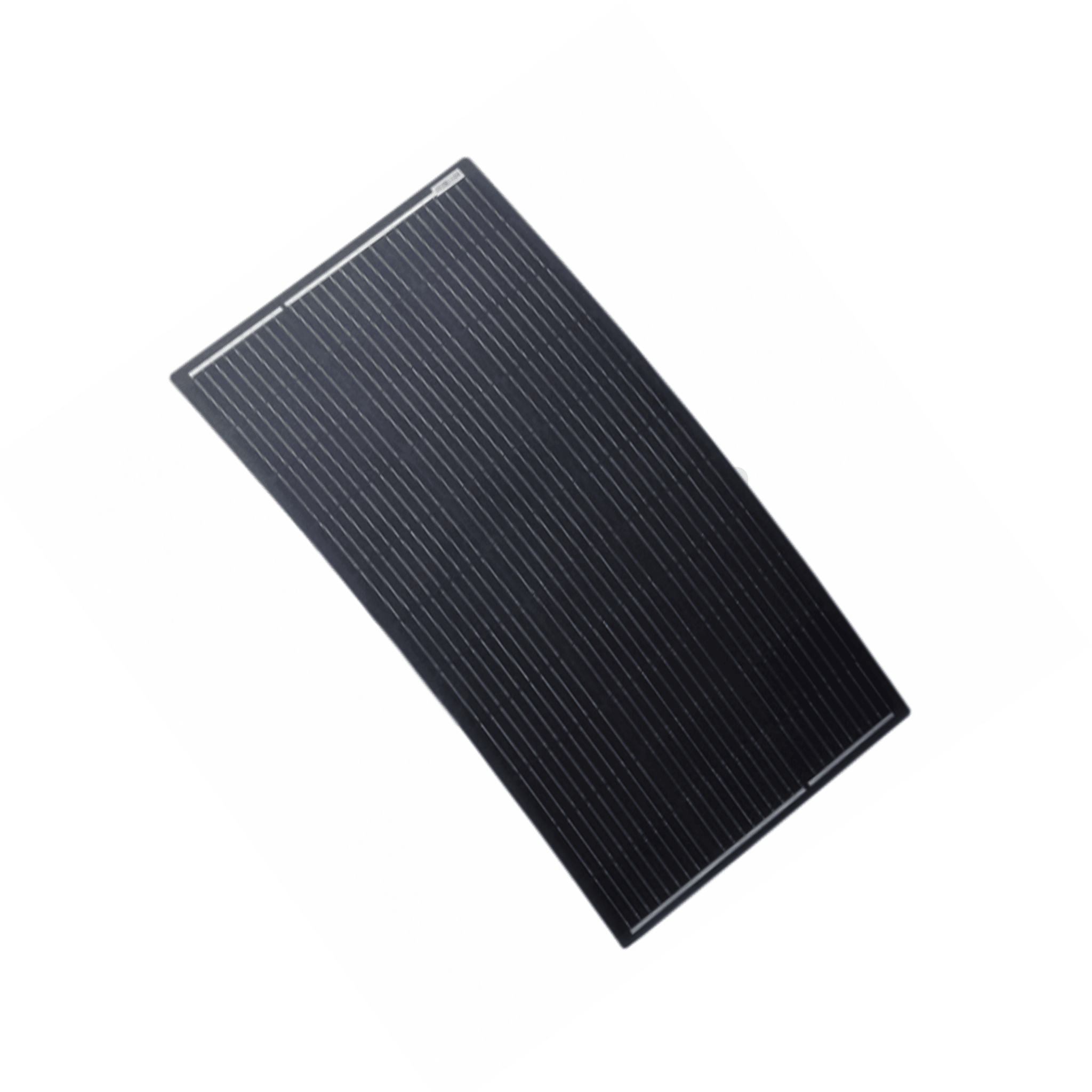

Solar Panel

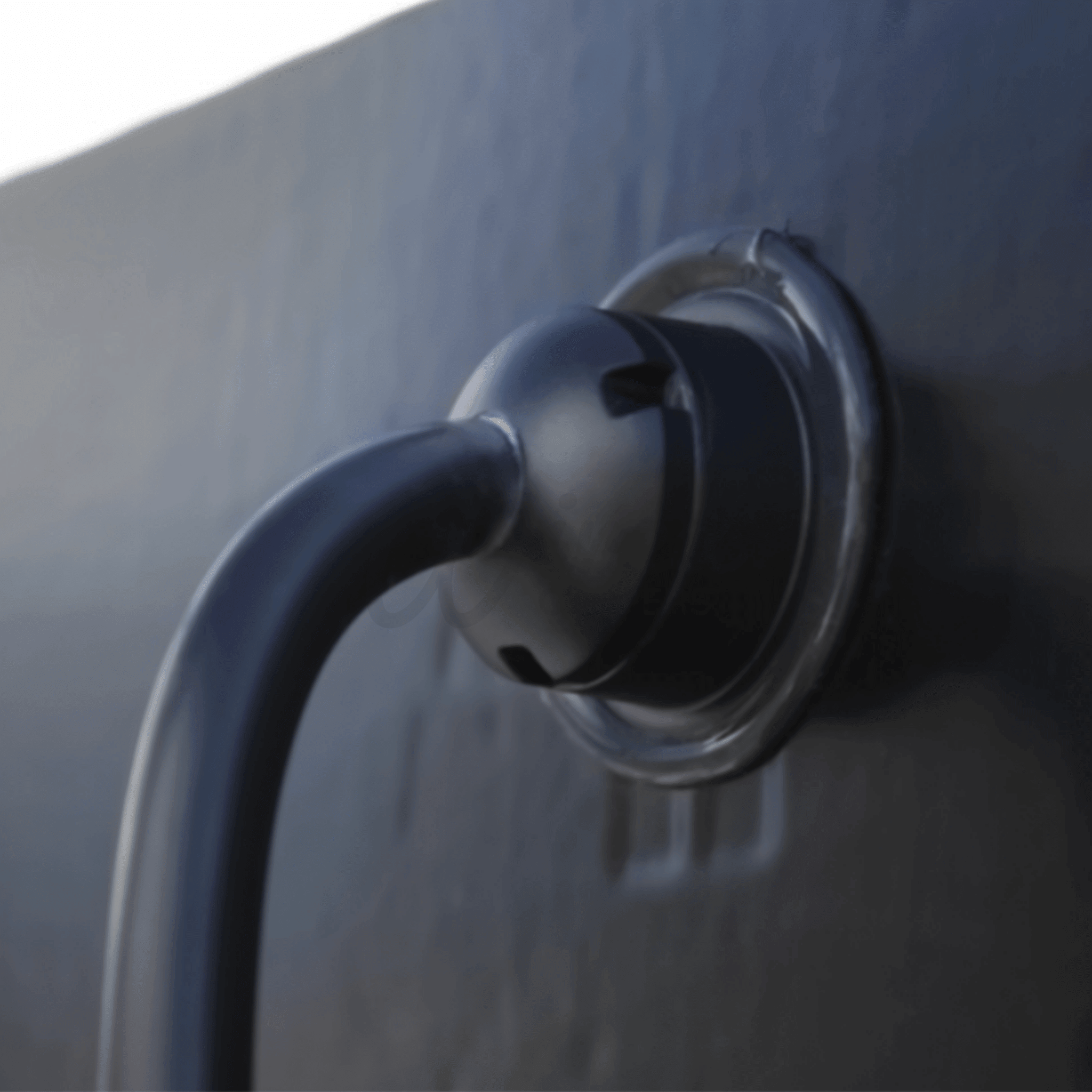

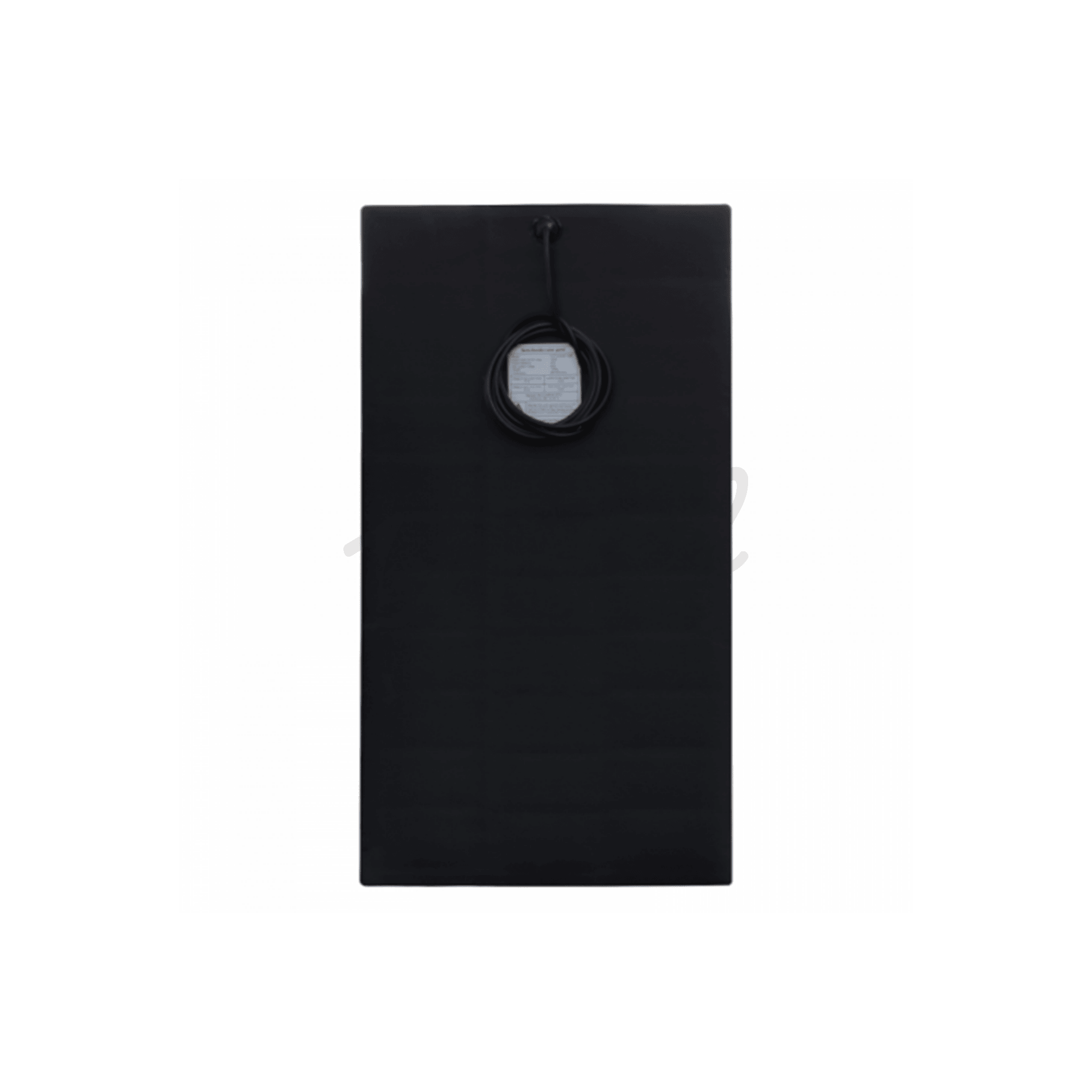

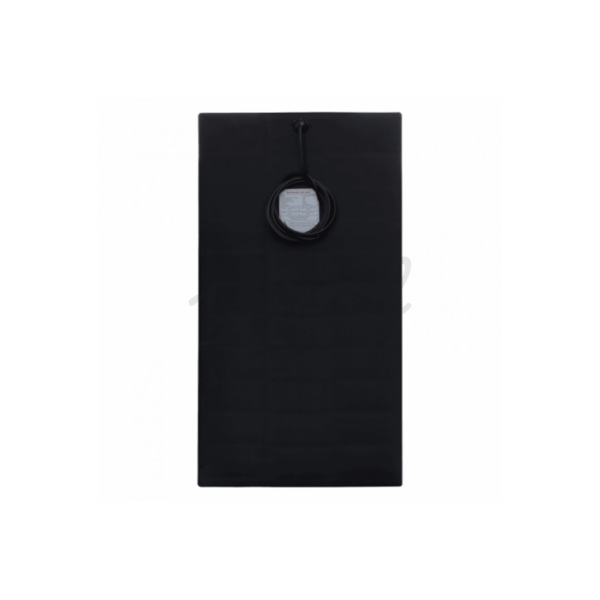

This particular model features the junction box and cable on the rear side of the panel to create a completely level surface and professional finish after installation. Unlike other solar panels, the junction box on this solar panel is a circular shape with only one dual core cable (3m length) attached, allowing for simplified installation. Please note: in order for this panel to be flush-mounted, a recess must be cut in to the roof/surface.
This solar panel has a unique black backing, making it ideal for discreet and aesthetically pleasing installation on dark coloured roofs, vehicles or mounting surfaces. Please note that this solar panel is not ‘ultra jet-black’ – the exact hue may vary marginally from panel to panel, depending on the batch of solar cells.
The textured surface of this solar panel reduces the reflection of light whilst maximising the absorption of light from every possible angle. This ensures high performance in low light or cloudy conditions, or when the light falls at an angle (in the morning, evening, or winter).
- Peak power: 100W
- Maximum power voltage: 19.1V
- Maximum power current: 5.24A
- Open circuit voltage: 22.3V
- Short circuit current: 5.50A
- Dimensions: 990 x 540 x 2 mm
- Weight: 1.92 kg
Solar Equipment
- MC4 Solar connector.
- Solar fuse and MC4 waterproof holder.
Cables
Wiring from the MPPT controller to the solar panel will be in 6mm2 UV resistant solar cable, available in 3M, 5M, or 10M lengths.
Wiring from the MPPT controller to the battery terminals will be in 6mm2 tri rated cable in a standard length of 3M.
Accessories
- High quality positive and negative battery terminals with PVC covers.
- In line battery fuse and holder.
- 4 X Bootlace ferrules for clean wire termination to the MPPT controller.
- Associated heat shrink and terminals to complete the installation.
Please note, this is in kit form so will require assembly (crimping/cutting cables).
