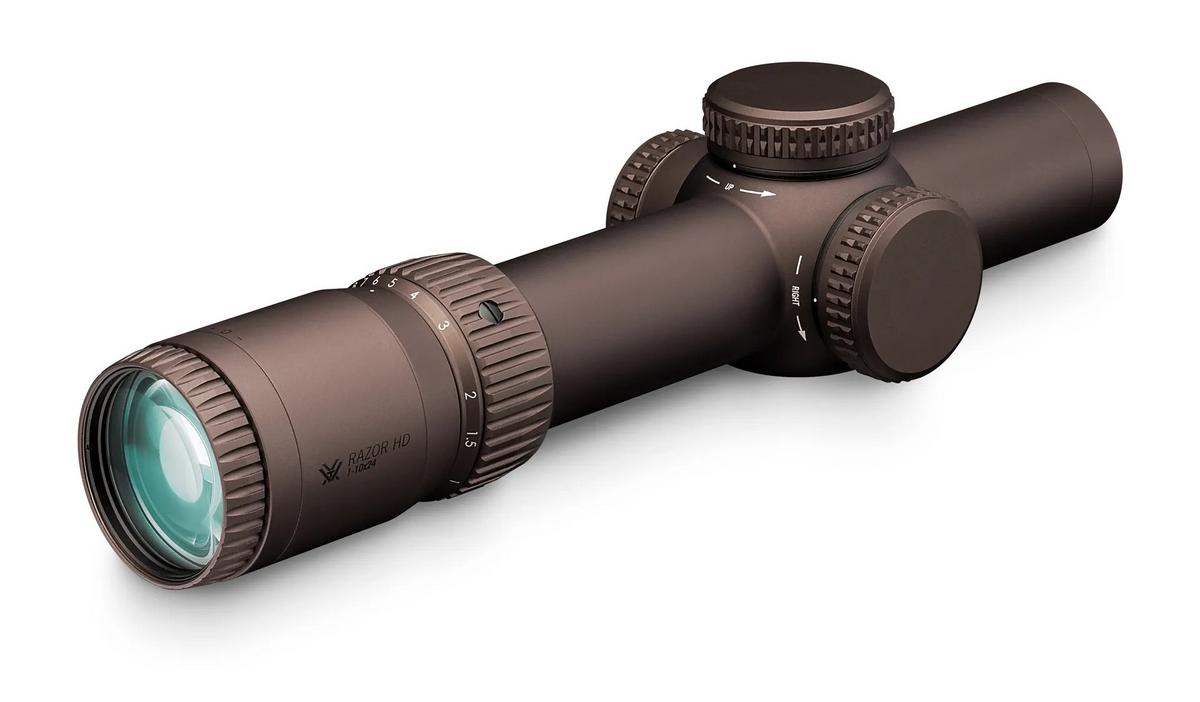

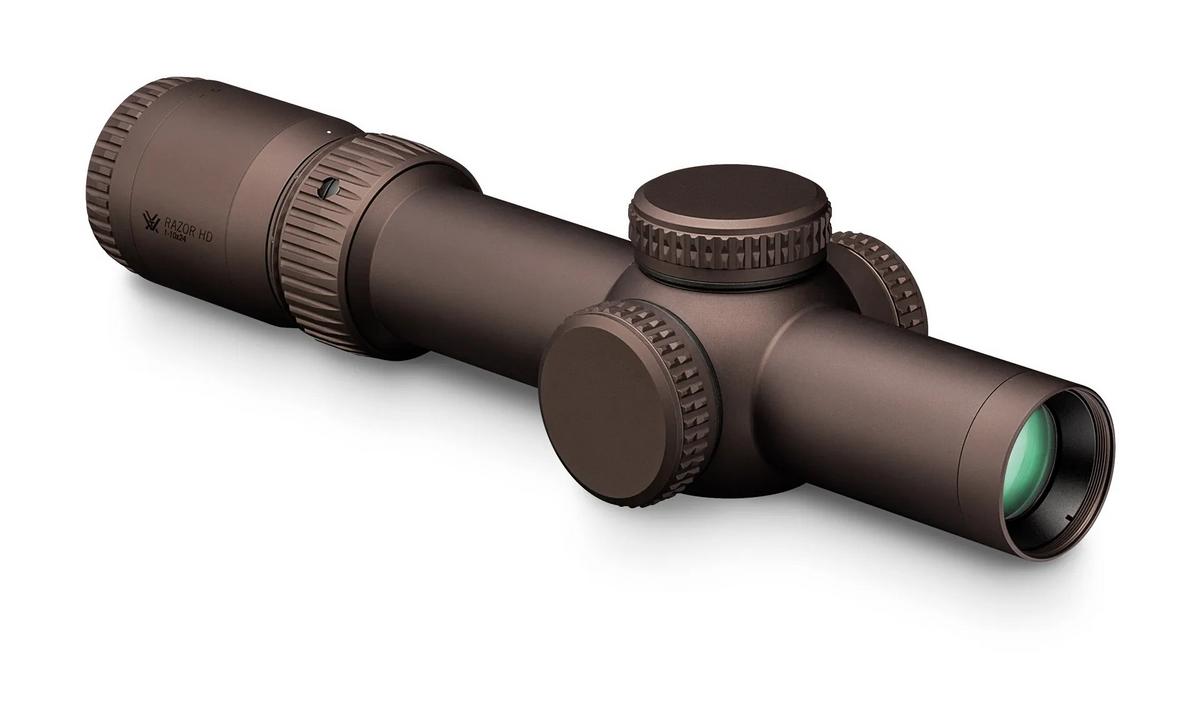

Vortex Razor HD GEN III 1-10×24 FFP EBR-9 MOA
The next evolution of our wildly popular Razor line, the Razor HD Gen III 1-10×24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power. Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our 1-6x, but doesnât sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.
Specifications
- Magnification:- 1-10x
- Objective Lens Diameter:- 24 mm
- Reticle:- EBR-9 (MOA)
- Turret Style:- Low Capped
- Tube Size:- 34 mm
- Adjustment Graduation:- 1/4 MOA
- Parallax Setting:- Fixed @150 yds
- Max Windage Adjustment:- 120 MOA
- Max Elevation Adjustment:- 120 MOA
- Travel Per Rotation:- 25 MOA
- Field of View:- 116-11.7 ft @100 yds
- Eye Relief:- 3.6 inches
- Length:- 10.1 inches
- Weight:- 21.5 oz
Features
- Aluminum Grade – Aircraft
- APO System – Index-matched lenses correct color across the entire visual spectrum.
- ArmorTek® – Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Erector Tube System – Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished.
- Fricion Reduction System – Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665
- Multi-Coated – XR⢠Fully Multi-Coated
- HD Lens Elements – HD
- Optically Indexed Lenses – Optimize image sharpness and brightness from edge to edge.
- Shockproof – Rugged construction withstands recoil and impact.
Reticle
EBR-9 (MOA)
The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections.
INCLUDED IN THE BOX
- Sunshade
- Lens cloth
- CR2032 Battery
- Throw lever
- L-TEC Tool
