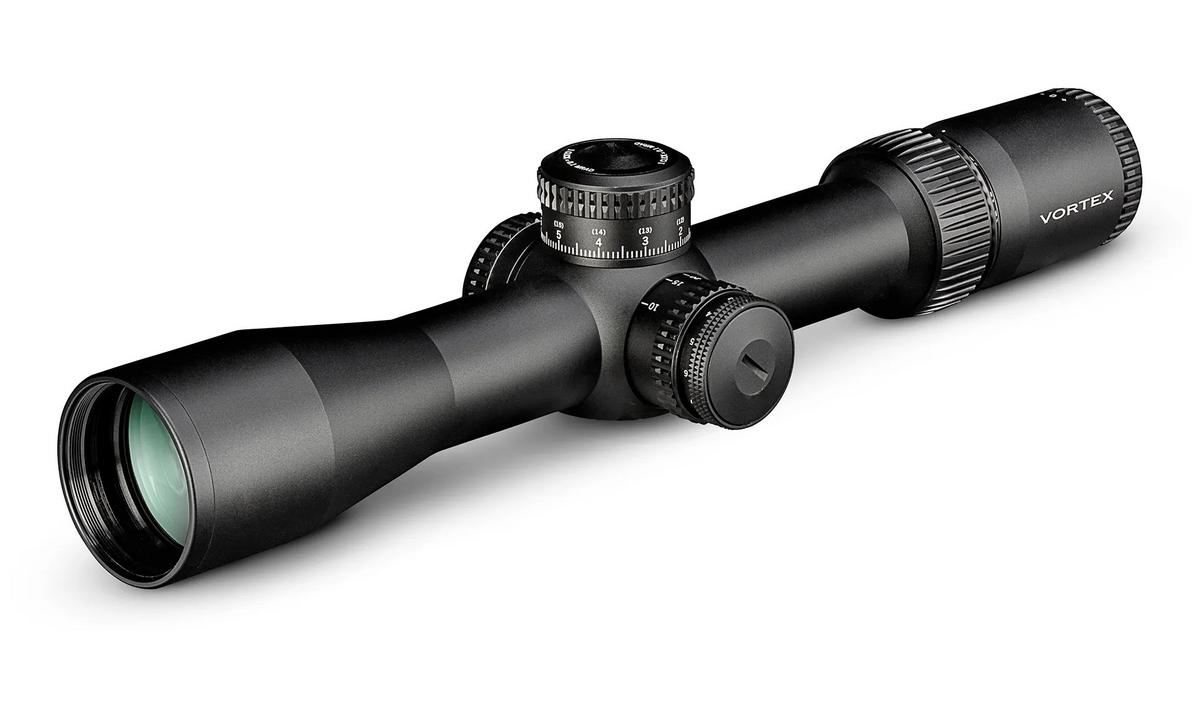

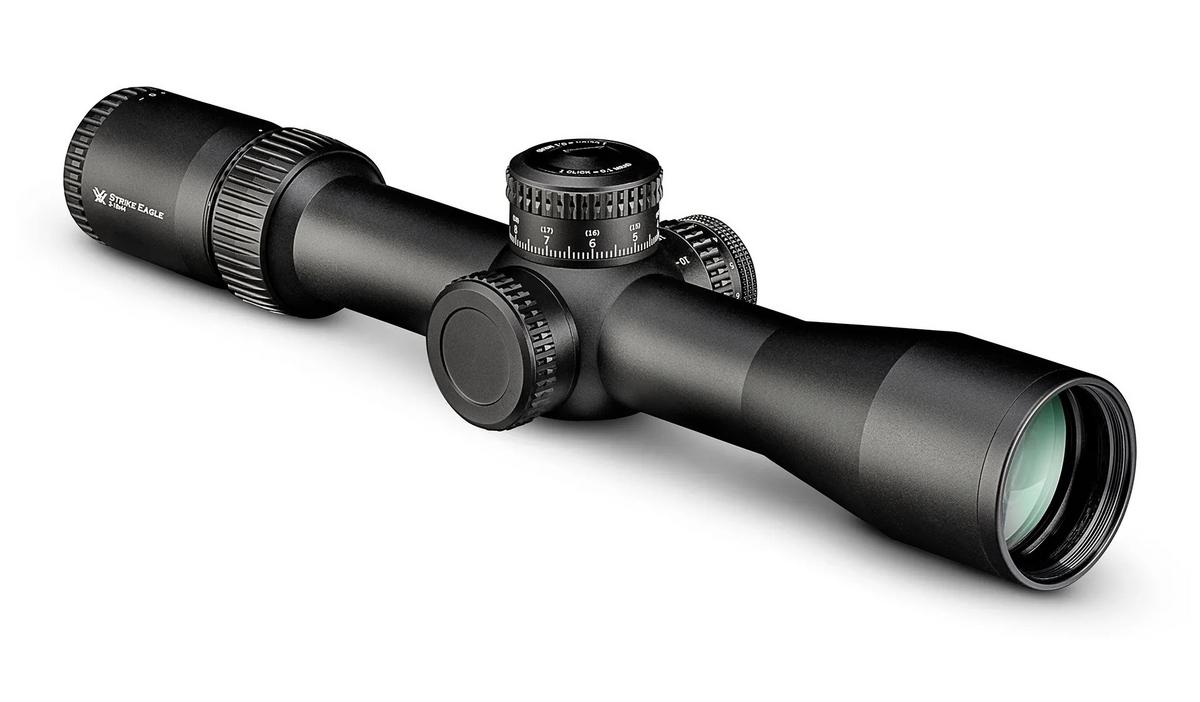

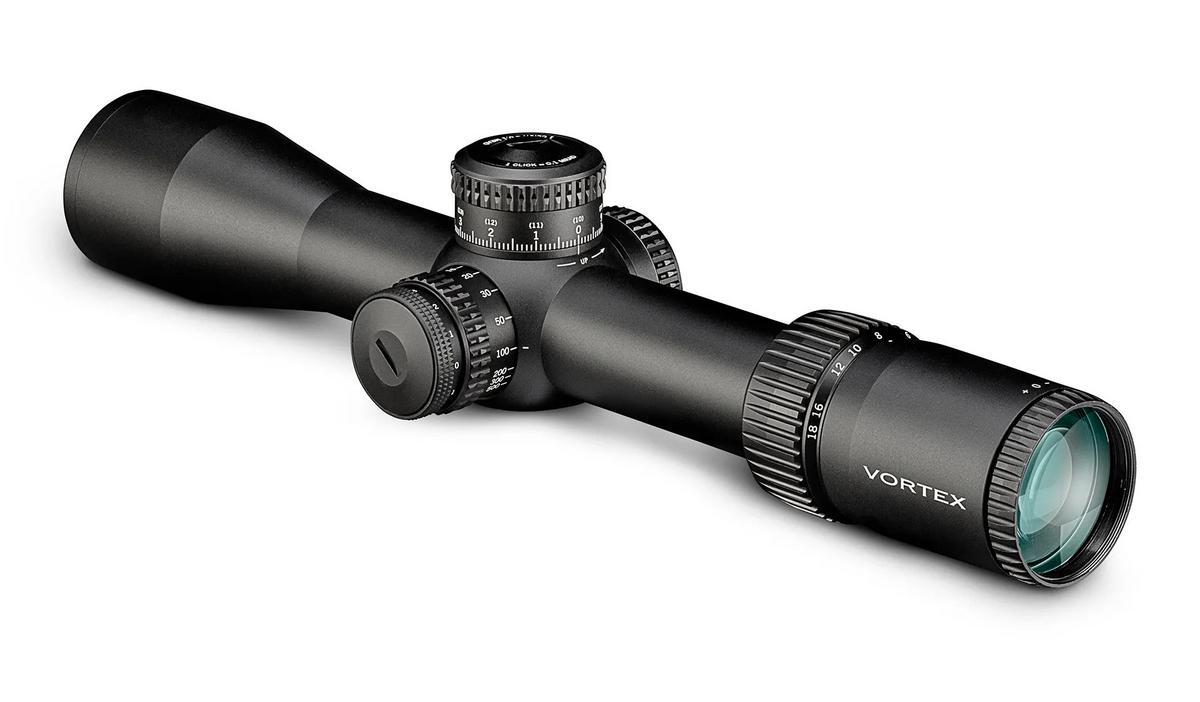

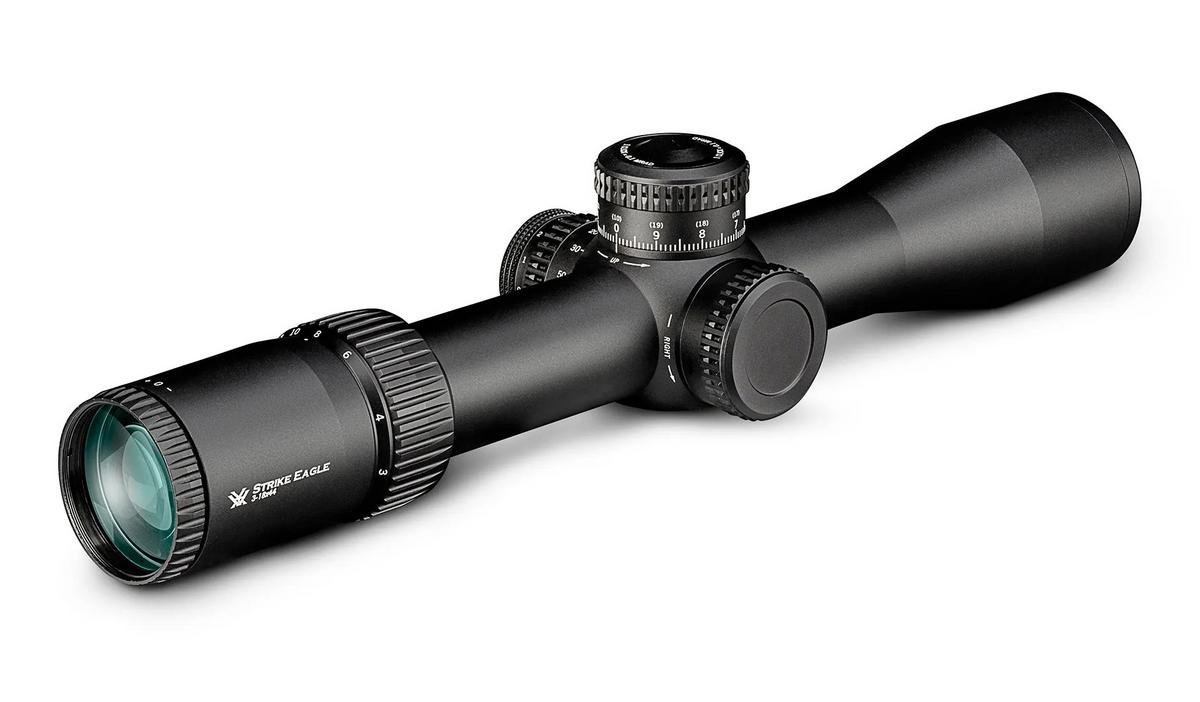

Vortex Strike Eagle 3-18×44 FFP EBR-7C MOA
The gap between tactical mid- and long-range shooting is gone. Top off your carbine or DMR rifle with a first focal plane optic thatâs versatile, tough, ultra-clear at any magnification, and specifically designed for rapid adjustment in fast-changing target scenarios.

Specifications

Magnification:- 3-18x
Objective Lens Diameter:- 44 mm
Reticle:- EBR-7C (MOA)
Turret Style:- Exposed Elevation Capped Windage
Tube Size:- 34 mm
Adjustment Graduation:- 1/4 MOA
Parallax Setting:- 10 yds
Max Windage Adjustment:- 62 MOA
Max Elevation Adjustment:- 154 MOA
Travel Per Rotation:- 25 MOA
Field of View:- 39.3′ – 6.7′
Eye Relief:- 3.8″
Length:- 13.3″
Weight:- 27.3 oz

Features

Optical Features

First Focal Plane Reticle – Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
XD Optical System – Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in
Illuminated Reticle – Provides precise aiming under low-light conditions.
RevStopâ¢ Zero System – Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments.
Glass-Etched Reticle – Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Fully Multi-Coated Lenses – Anti-reflective coatings on all air-toglass surfaces provide increased light transmission for greather clarity and low-light performance.

Construction Features

ArmorTekÂ® – Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Single-Piece Tube – Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Low Glare Matte Black Annodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.
Nitrogen Gas Purged Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Waterproof – Designed to withstand harsh weather conditions
Fogproof – Nitrogen gas purging prevents internal fogging over a wide range of temperatures
Shockproof – Designed to withstand the highest levels of recoil and impact.

Convenience Features

Fast Focus Eyepiece – Allows quick and easy reticle focusing
Throw Lever – The included throw lever can be installed for quick and easy magnification adjustments

Reticle

EBR-7C (MOA)

Designed to maximize long-distance shooting and ranging abilities, the EBR-7C reticle can be used to effectively determine ranges, holdovers,windage corrections, and moving target leads.Ultra-precision laser etching on the glass reticle ensures that specifications are kept to the tightest tolerances possible. The fine center crosshair subtensions on the EBR-7C reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility. Includes windage reference dots on drop lines
